VT4W · Vapor Tight High Bay · 4-Foot

4ft LED Linear Vapor Tight High Bay

Built For The Harshest Environments

Certifications

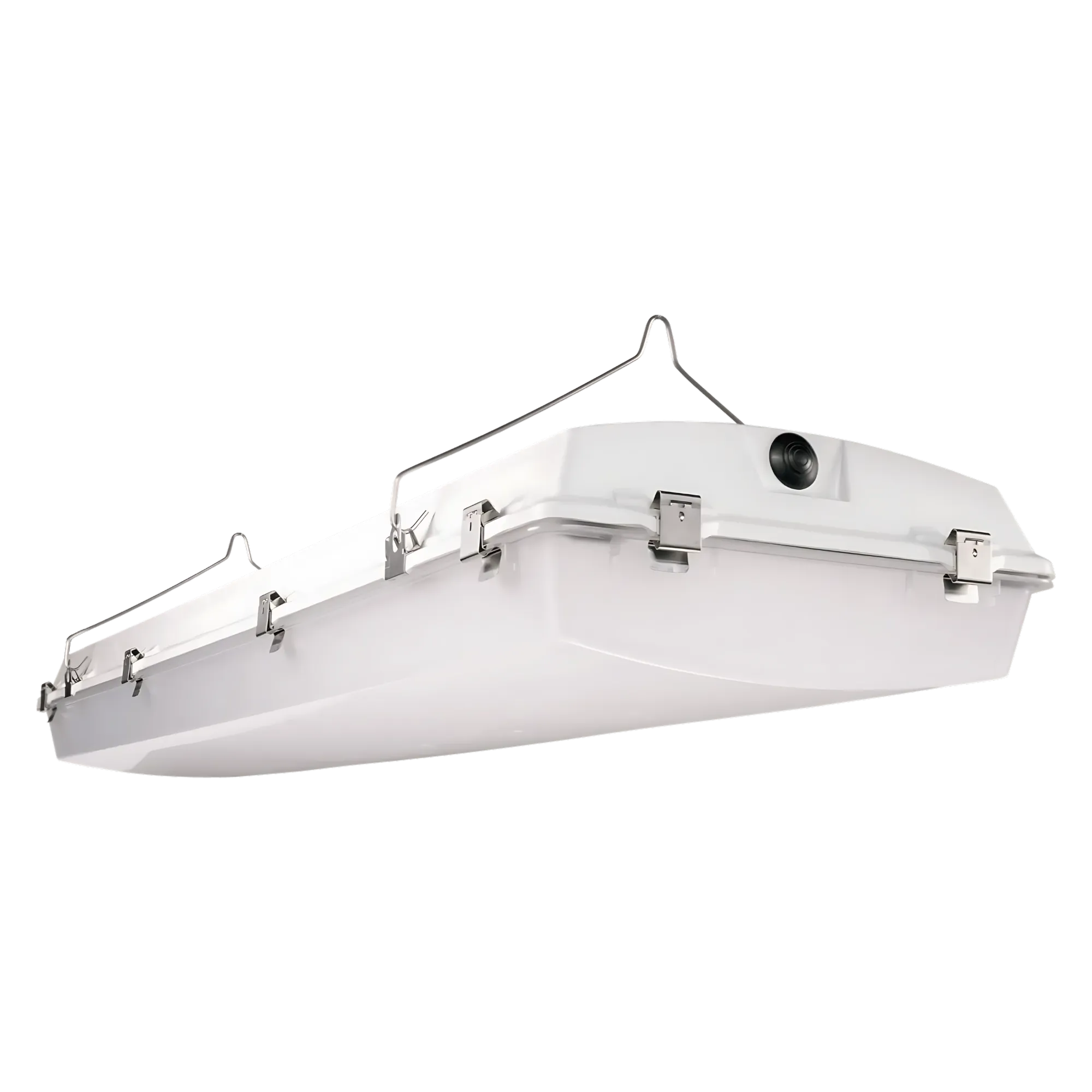

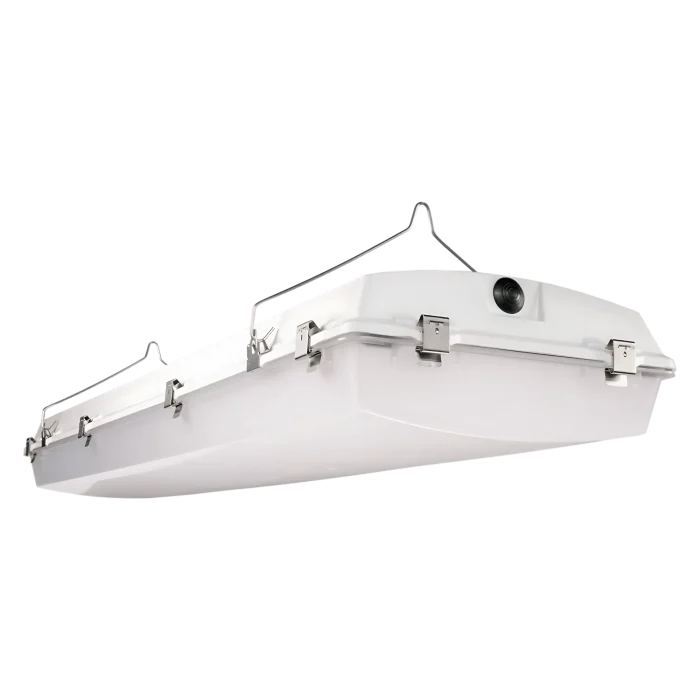

The VT4W 4ft LED Linear Vapor Tight High Bay is purpose-built for tight spaces that demand superior protection. Constructed from a non-combustible UL 5VA fiberglass housing with a poured-in-place polyurethane gasket, this fixture achieves IP65, IP66, and IP67 ratings along with NEMA 4X certification for wet locations and corrosive environments. Designed for high performance, this compact low bay produces between 20,000 and 40,000 lumens of reliable illumination.

Ideal Applications

  • Parking Garages and Structures
  • Food Processing and Washdown Areas
  • Cold Storage and Walk-in Freezers
  • Car Wash Facilities
  • Manufacturing Facilities
130 to 260

Watts

18333 to 41647

Lumens

3500/4000/5000

Kelvin

IP67

Ingress

Highlights

Engineered for facilities where lighting failure is not an option.

IP67 Ingress Protection

Fully gasketed UL 5VA fiberglass housing, high pressure washdown and corrosive environment ready.

Cold Rated -40°F

Reliable cold-start in freezers, blast cells, and refrigerated storage.

130 to 260 Watts

18333 to 41647 delivered lumens. One housing, project-specified output.

NSF Rated

NSF-certified for splash zone safety in food processing.

DLC Premium

Qualifies for utility rebates in all major U.S. territories.

5 Year Warranty

Driver, LEDs, and housing covered.

Federal-Ready

BAA / BABA compliant for federal procurement and infrastructure.

Mounting Options

V-Hook, Mounting Bracket, Rigid Mount, Pendant, Cable.

Specifications

Built to your project, not to a part number.

Talk to our sales team at [email protected] to match the right configuration to your application.

Photometrics

Lumen Output

18333-41647 lm

Efficacy

Up to 168 lm/W

CCT Options

3500K, 4000K, 5000K

CRI

80 (90 Available Upon Request)

Optics & Distribution

Clear, Frosted Acrylic and Polycarbonate Lensing

L70

>50,000 Hours

Electrical

Wattage

130 to 260 Watts

Voltage

Universal (120-277V) – 347/480V Optional

Driver

0-10V Controls Ready Standard

Power Factor

>0.90

THD

< 20%

Surge Protection

6kV/3kA

Mechanical

Length

51.9″

Width

14.6″

Height

5.8″

Weight

13.0 lbs.

Housing

UL 5VA Fiberglass

Mounting

V-Hook, Mounting Bracket, Rigid Mount, Pendant, Cable

Compliance & Environment

Ingress Rating

IP67

Operating Temp

-40°F to 131°F (-40°C to 55°C)

Certifications

UL Listed, IP65/66/67, DLC Premium, RoHS, NSF, NEMA 4X

Trade Compliance

BAA · BABA

Warranty

5 Years

Lead Time

4 to 6 Weeks

Resources & Downloads

Spec packages for designers, engineers, and procurement.

Spec’ing a project? Call us at (530) 887-1110

PDF

VT4W Specification Sheet

IES

VT4W Photometric Files (.IES)

RFA

VT4W Revit / BIM Family

PDF

VT4W Photometric Report

PDF

VT4W Install Guide

PDF

VT4W BAA/BABA/TAA Trade Compliance
