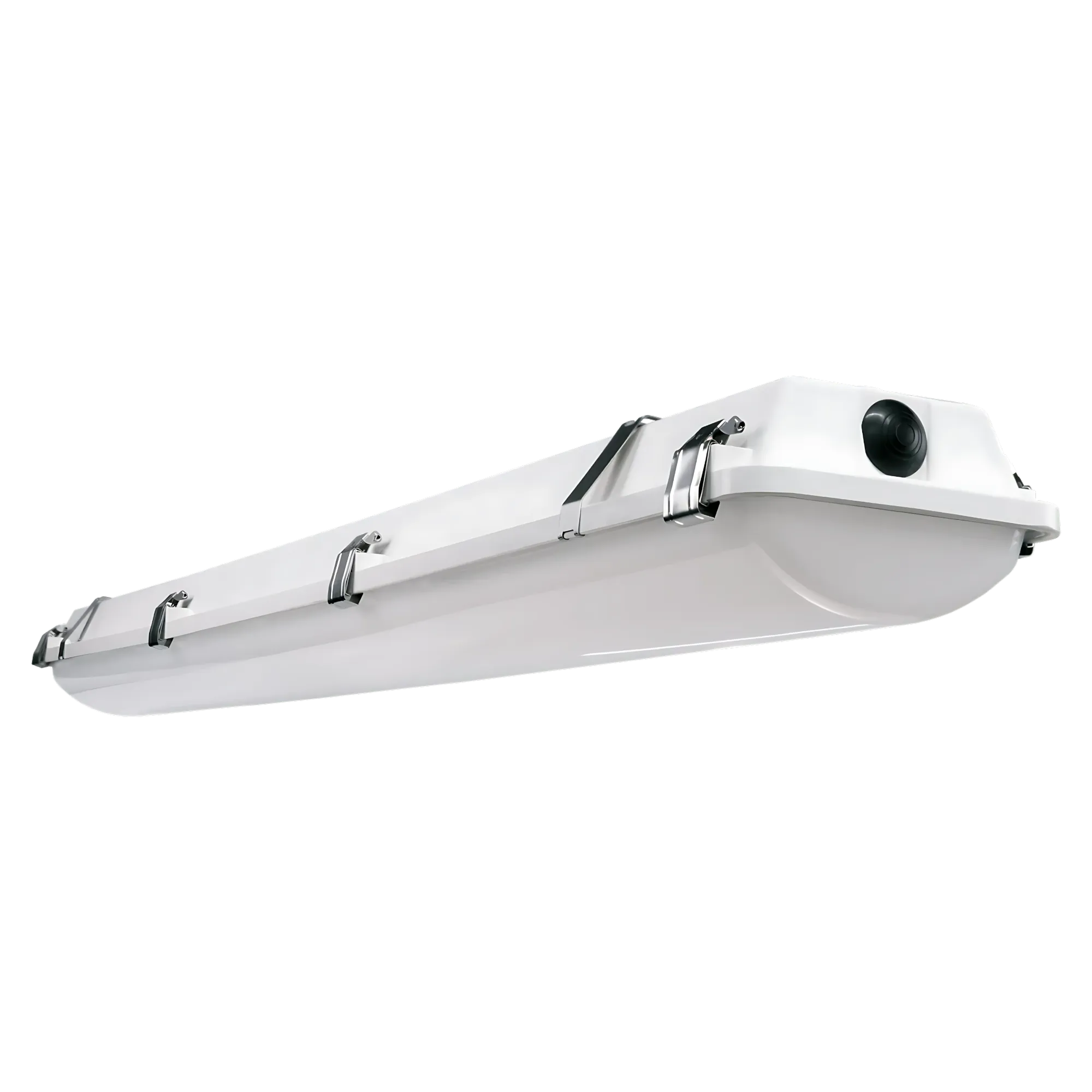

4ft LED Linear Narrow Vapor Tight

VT4N · Narrow Vapor Tight · 4-Foot

4ft LED Linear Narrow Vapor Tight

Versatile and compact size for harsh environments

SKU 1ST-VT4N Category

Certifications

The VT4N 4ft LED Linear Narrow Vapor Tight Light is engineered for the harshest environments. Constructed from impact-resistant fiberglass with a poured-in-place gasket, this fixture achieves IP65, IP66, IP67, and NEMA 4X ratings to withstand moisture, dust, and corrosive environments. Delivering power from 25W to 81W , this fixture produces between 3,500 to 12,400 lumens of reliable illumination .

Ideal Applications

  • Parking Garages and Structures
  • Food Processing and Washdown Areas
  • Cold Storage and Walk-in Freezers
  • Car Wash Facilities
  • Manufacturing Facilities
25 to 81

Watts

3575 to 12644

Lumens

3500/4000/5000

Kelvin

IP67

Ingress

Request A Quote
Download Files

Highlights

Engineered for facilities where lighting failure is not an option.

IP67 Ingress Protection

Fully gasketed UL 5VA fiberglass housing, wet location and corrosive environment ready.

Cold Rated -40°F

Reliable cold-start in freezers, blast cells, and refrigerated storage.

25 to 81 Watts

3575 to 12644 delivered lumens. Linear form factor for evenly distributed light.

NSF Rated

NSF-certified for splash zone safety in food processing.

DLC Premium

Qualifies for utility rebates in all major U.S. territories.

5 Year Warranty

Driver, LEDs, and housing covered.

Federal-Ready

BAA / BABA compliant for federal procurement and infrastructure.

Mounting Options

V-Hook, Mounting Bracket, Rigid Mount, Pendant, Cable.

Specifications

Built to your project, not to a part number.

Talk to our sales team at [email protected] to match the right configuration to your application.

Contact Us!

Photometrics

Lumen Output

3575-12644 lm

Efficacy

Up to 180 lm/W

CCT Options

3500K, 4000K, 5000K

CRI

80 (90 Available Upon Request)

Optics & Distribution

Clear, Frosted Acrylic and Polycarbonate Lensing

L70

>50,000 Hours

Electrical

Wattage

25 to 81 Watts

Voltage

Universal (120-277V) – 347/480V Optional

Driver

0-10V Controls Ready Standard

Power Factor

>0.90

THD

< 20%

Surge Protection

6kV/3kA

Mechanical

Length

51.7″

Width

6.8″

Height

4.2″

Weight

10.0 lbs.

Housing

UL 5VA Fiberglass

Mounting

V-Hook, Mounting Bracket, Rigid Mount, Pendant, Cable

Compliance & Environment

Ingress Rating

IP67

Operating Temp

-40°F to 131°F (-40°C to 55°C)

Certifications

UL Listed, IP65/66/67, DLC Premium, RoHS, NSF, NEMA 4X

Trade Compliance

BAA · BABA

Warranty

5 Years

Lead Time

4 to 6 Weeks

Resources & Downloads

Spec packages for designers, engineers, and procurement.

Spec’ing a project? Call us at (530) 887-1110

PDF

VT4N Specification Sheet

Download

IES

VT4N Photometric Files (.IES)

RFA

VT4N Revit / BIM Family

PDF

VT4N Photometric Report

PDF

VT4N Install Guide

PDF

VT4N BAA/BABA/TAA Trade Compliance
