RSD-RC22-OTG · Racquetball Court Troffer · 2x2

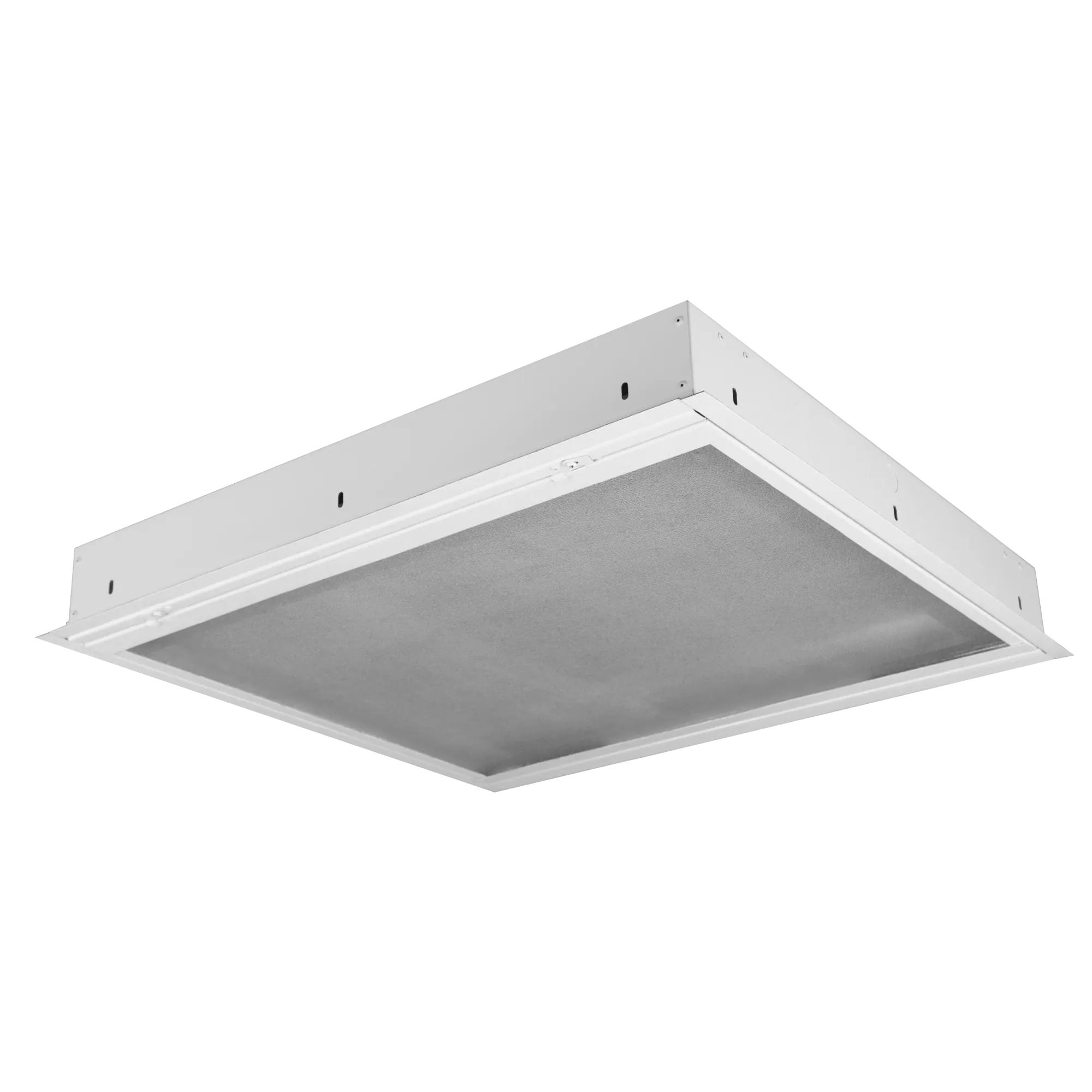

2×2 LED Racquetball Court Fixture

Sport-specific lighting for racquetball courts

SKU RSD-RC22-OTG Category

Certifications

In high-impact sports environments, visibility is critical, and durability is non-negotiable. This specialized 2×2 LED Racquetball Court Fixture provides the ultimate solution, featuring heavy-duty construction and high-impact shielding to protect against high-velocity ball strikes. Delivering power from 84W to 139W , this fixture produces between 12,000 and 19,000 lumens  of powerful illumination.

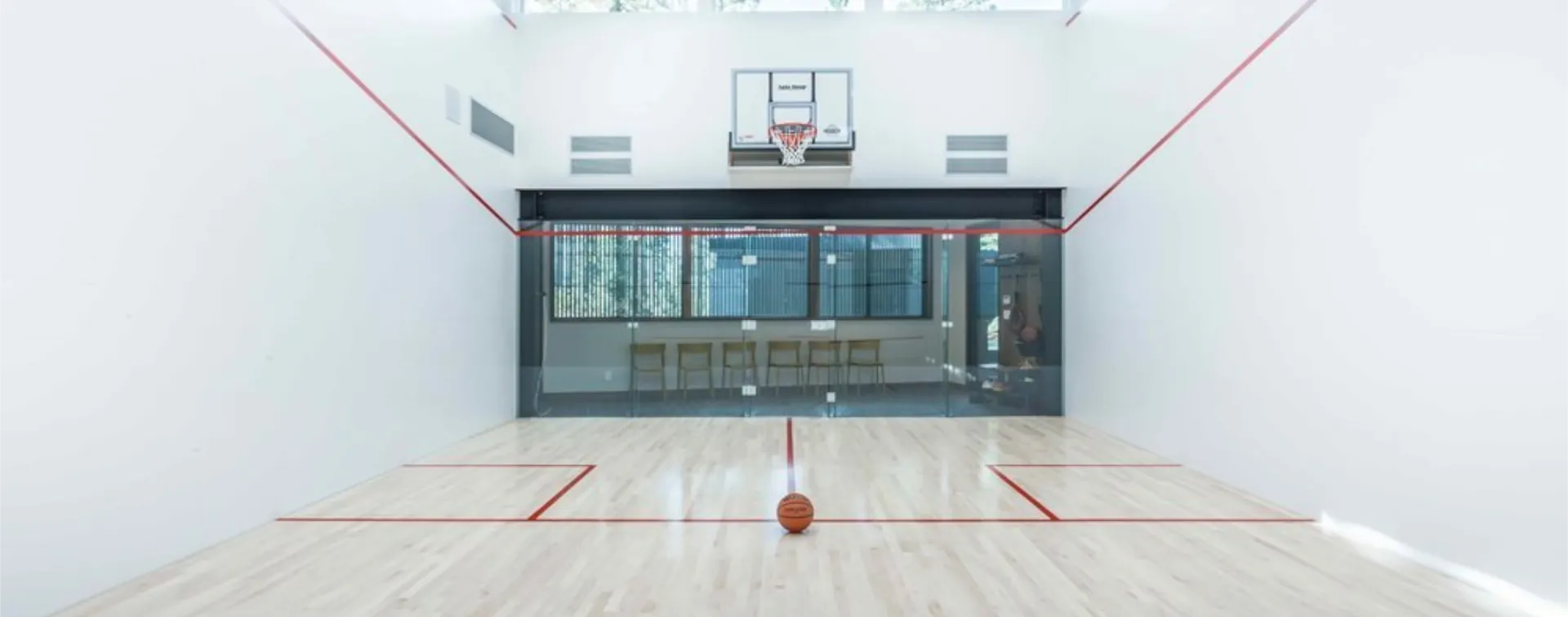

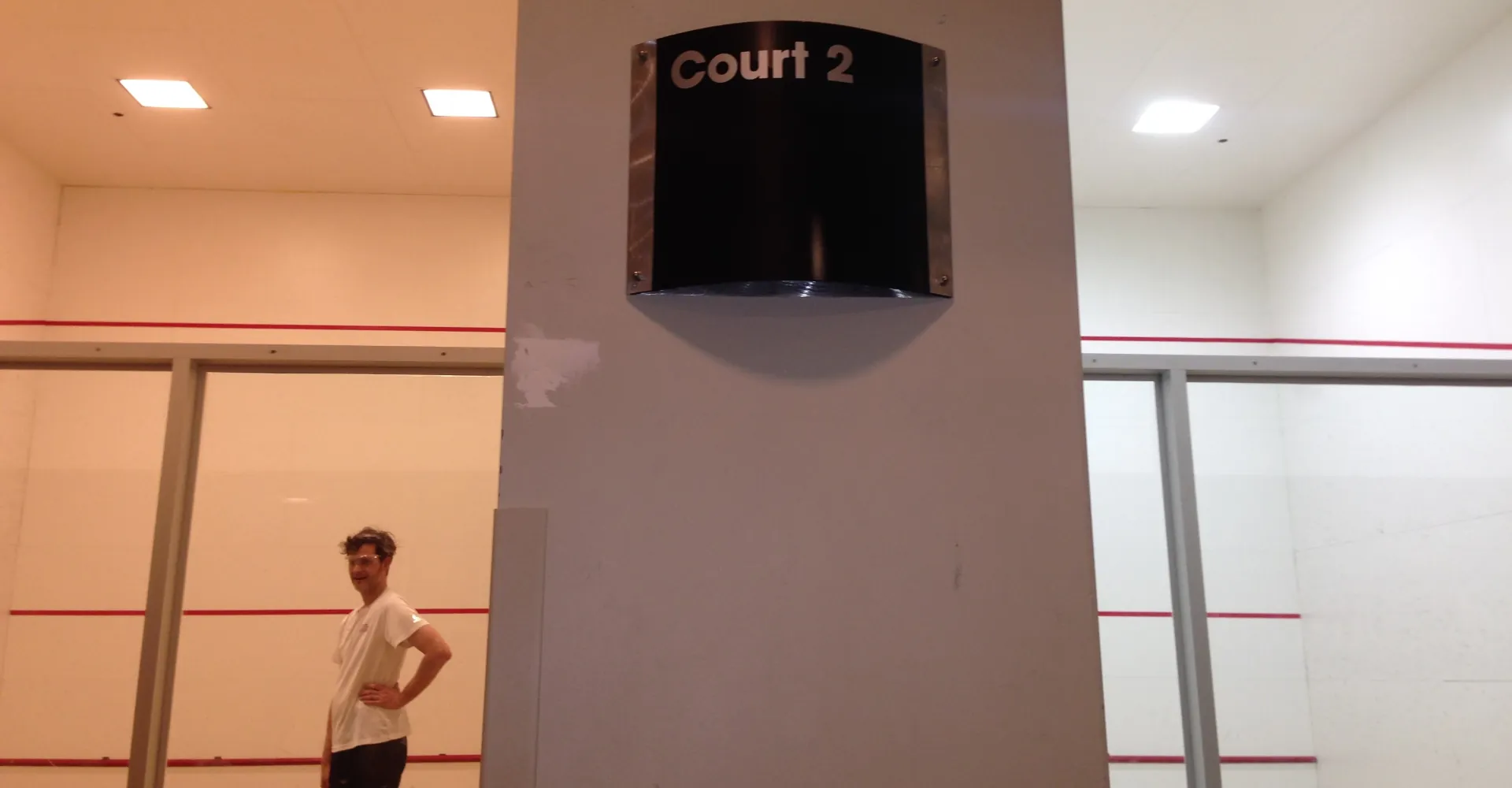

Ideal Applications

  • Racquetball Courts
  • Squash Courts
  • Handball Courts
  • School Gymnasiums
  • Recreation Centers
84 to 139

Watts

10677 to 18929

Lumens

3500/4000/5000

Kelvin

Damp Rated

Ingress

Highlights

Engineered specifically for Racquetball Court applications.

Sport-Specific Fixture

Purpose-built for racquetball court mounting and ceiling configurations.

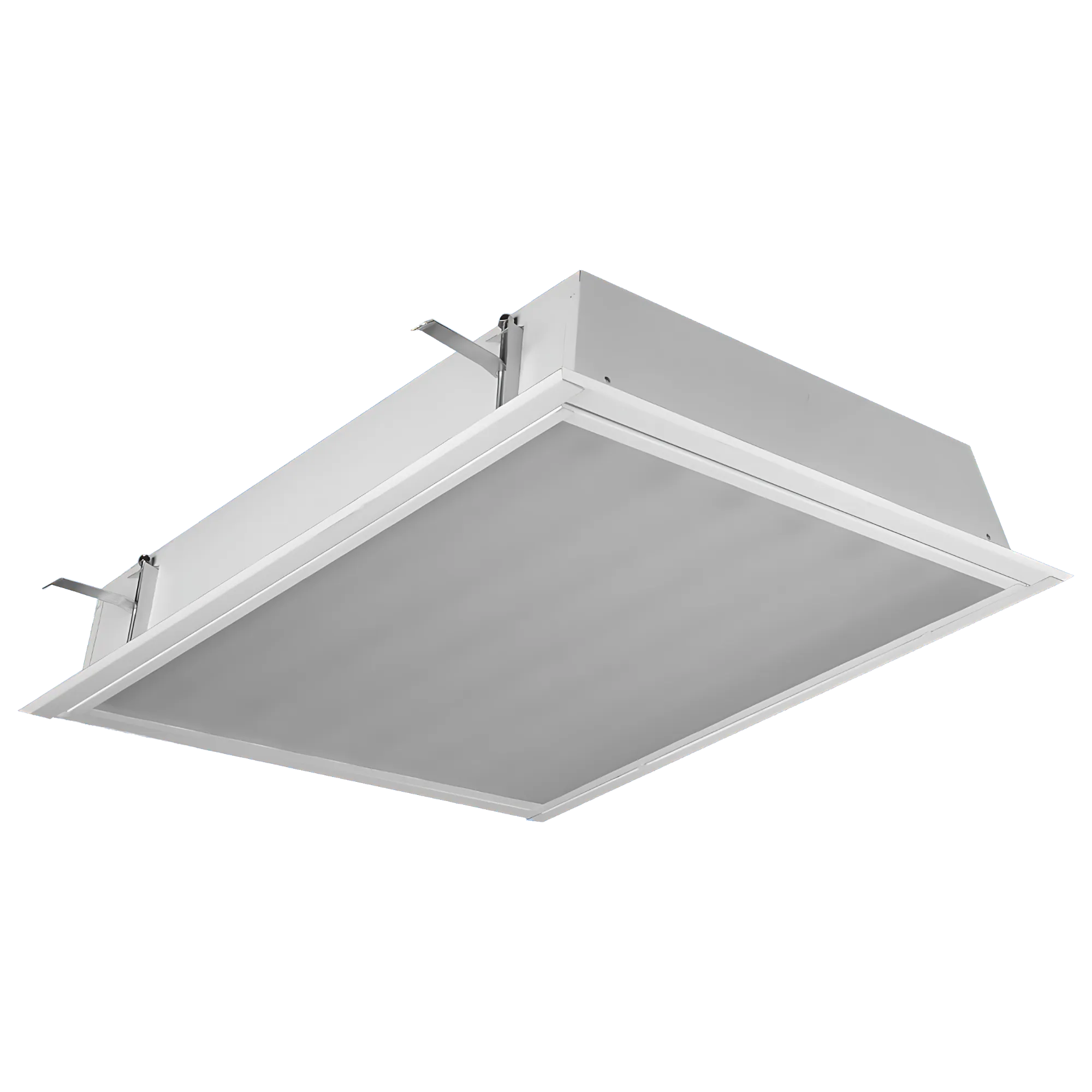

Obscured Tempered Glass

Impact-resistant lens for ball strikes and true rebound.

84 to 139 Watts

10677 to 18929 delivered lumens. Court-tuned output.

Recessed Mount

Flush troffer profile for racquetball ceiling clearance.

Wireless Controls Compatible

Integrates with wireless dimming and scene control systems.

7 Year Warranty

Driver, LEDs, and housing covered.

Federal-Ready

BAA / BABA compliant for federal procurement and infrastructure.

Mounting Options

Frame Mount, Flange Mount, T-Bar Lay In

Specifications

Built to your project, not to a part number.

Talk to our sales team at [email protected] to match the right configuration to your application.

Photometrics

Lumen Output

10677-18929 lm

Efficacy

Up to 137 lm/W

CCT Options

3500K, 4000K, 5000K

CRI

80 (90 Available Upon Request)

Optics & Distribution

Obscured Tempered Glass 120 Degree

L70

>50,000 Hours

Electrical

Wattage

84 to 139 Watts

Voltage

Universal (120-277V) – 347/480V Optional

Driver

0-10V Controls Ready Standard

Power Factor

>0.90

THD

< 20%

Surge Protection

6kV/3kA

Mechanical

Length

Up to 25″

Width

Up to 24″

Height

Up to 4.1″

Weight

18.0 lbs.

Housing

Recessed Housing

Mounting

Frame Mount, Flange Mount, T-Bar Lay-In

Compliance & Environment

Ingress Rating

Damp Rated

Operating Temp

-40ºC/−40ºF to 50ºC/122ºF

Certifications

BAA, BABA, CSA Listed, Made in the USA

Trade Compliance

BAA · BABA

Warranty

7 Years

Lead Time

4-6 Weeks

Resources & Downloads

Spec packages for designers, engineers, and procurement.

Spec’ing a project? Call us at (530) 887-1110

PDF

RSD-RC22-OTG Specification Sheet

IES

RSD-RC22-OTG Photometric Files (.IES)

RFA

RSD-RC22-OTG Revit / BIM Family

PDF

RSD-RC22-OTG Photometric Report

PDF

RSD-RC22-OTG Install Guide

PDF

RSD-RC22-OTG BAA/BABA/TAA Trade Compliance
