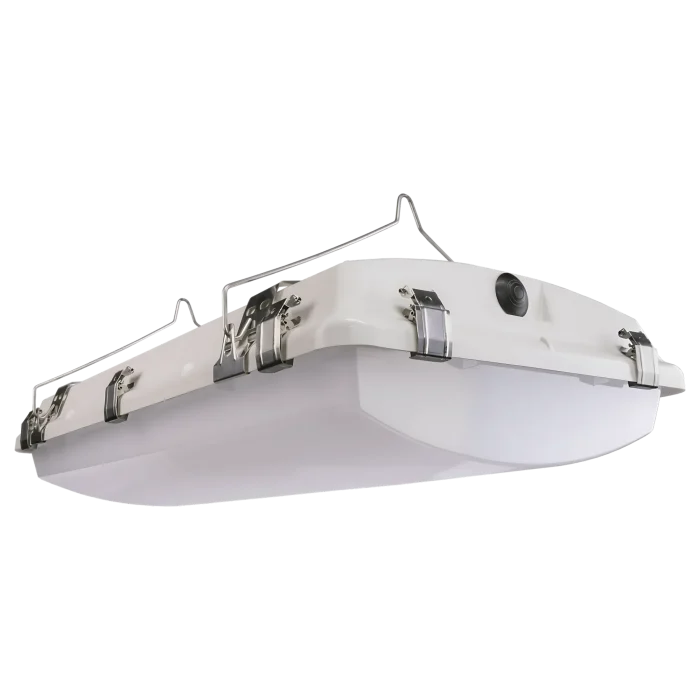

VT2W · Vapor Tight High Bay · 2-Foot

2ft LED Linear Vapor Tight High Bay

Built For The Harshest Environments

Certifications

The LED 2ft Vapor Tight High Bay is purpose-built for tight spaces that demand superior protection. Constructed from a non-combustible UL 5VA fiberglass housing with a poured-in-place polyurethane gasket, this fixture achieves IP65, IP66, IP67, and IP69 ratings along with NEMA 4X certification for high-pressure washdowns and corrosive environments. Designed for high performance, this compact high bay produces between 10,000 and 21,000 lumens of reliable illumination.

Ideal Applications

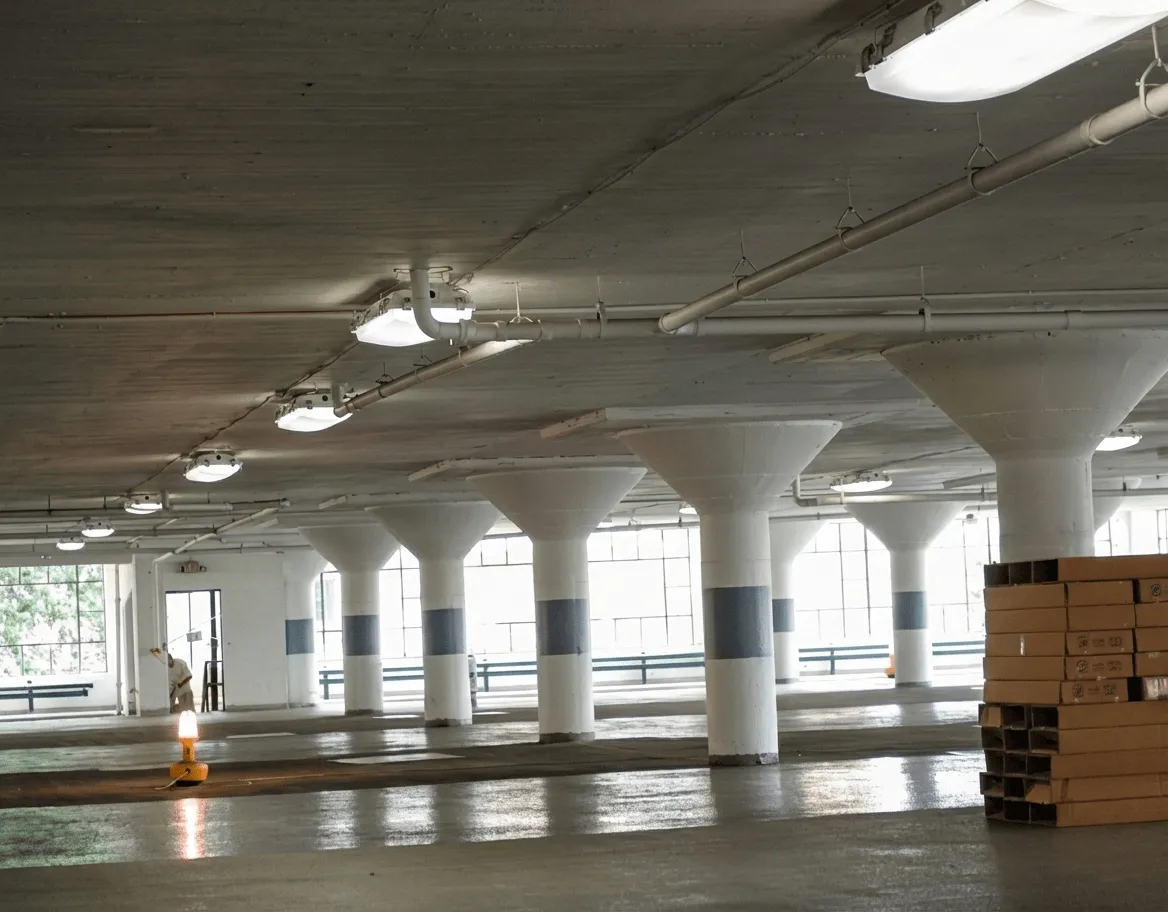

  • Parking Garages and Structures
  • Food Processing and Washdown Areas
  • Cold Storage and Walk-in Freezers
  • Car Wash Facilities
  • Manufacturing Facilities
64 to 128

Watts

10000 to 21000

Lumens

3500/4000/5000

Kelvin

IP69

Ingress

Highlights

Engineered for facilities where lighting failure is not an option.

IP69 Ingress Protection

Fully gasketed UL 5VA fiberglass housing, high pressure washdown and corrosive environment ready.

Cold Rated -40°F

Reliable cold-start in freezers, blast cells, and refrigerated storage.

64 to 128 Watts

10000 to 21000 delivered lumens. One housing, project-specified output.

NSF Rated

NSF-certified for splash zone safety in food processing.

DLC Premium

Qualifies for utility rebates in all major U.S. territories.

5 Year Warranty

Driver, LEDs, and housing covered.

Federal-Ready

BAA / BABA compliant for federal procurement and infrastructure.

Mounting Options

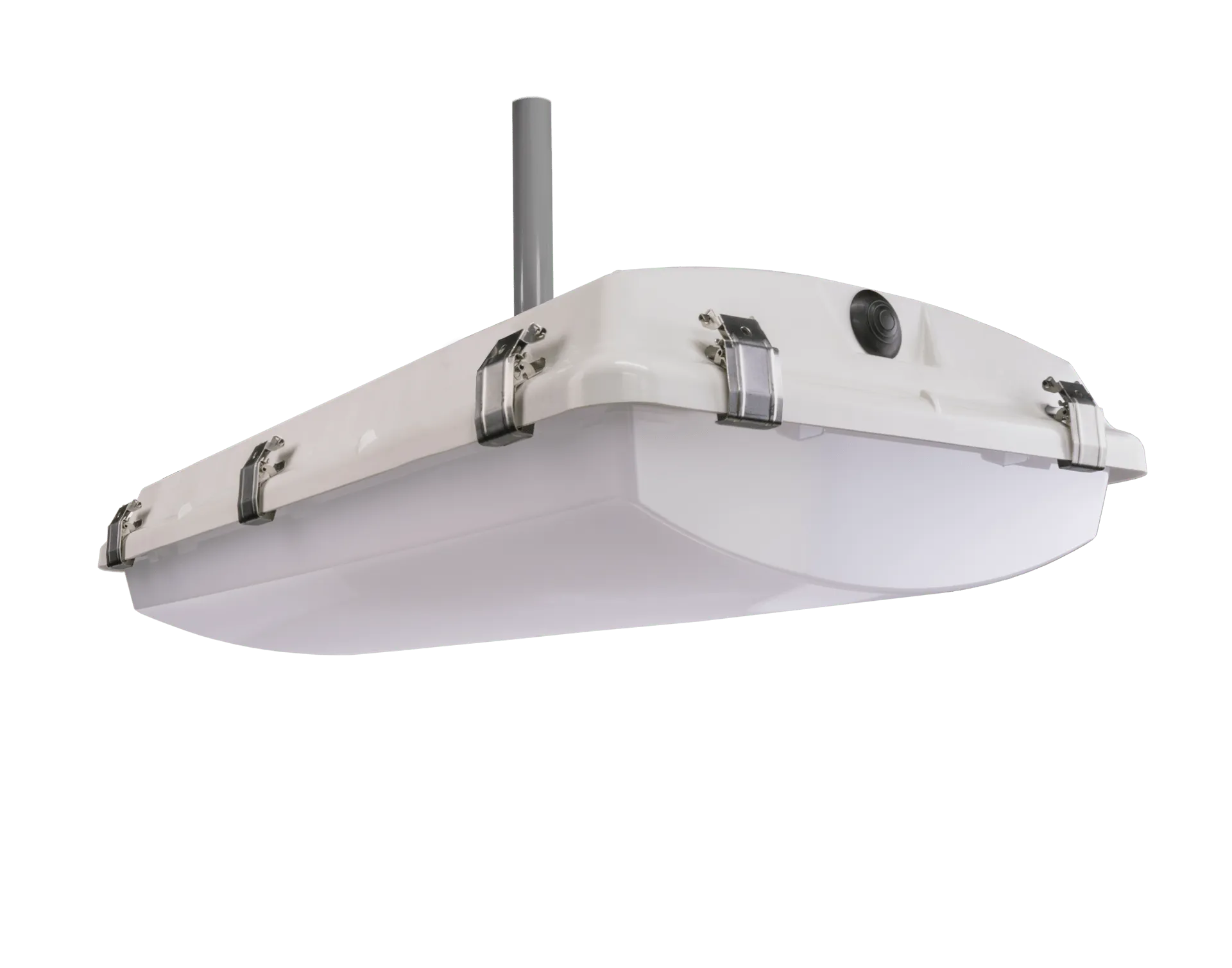

V-Hook, Mounting Bracket, Rigid Mount, Pendant, Cable.

Specifications

Built to your project, not to a part number.

Talk to our sales team at [email protected] to match the right configuration to your application.

Photometrics

Lumen Output

10000-21000 lm

Efficacy

Up to 174 lm/W

CCT Options

3500K, 4000K, 5000K

CRI

80 (90 Available Upon Request)

Optics & Distribution

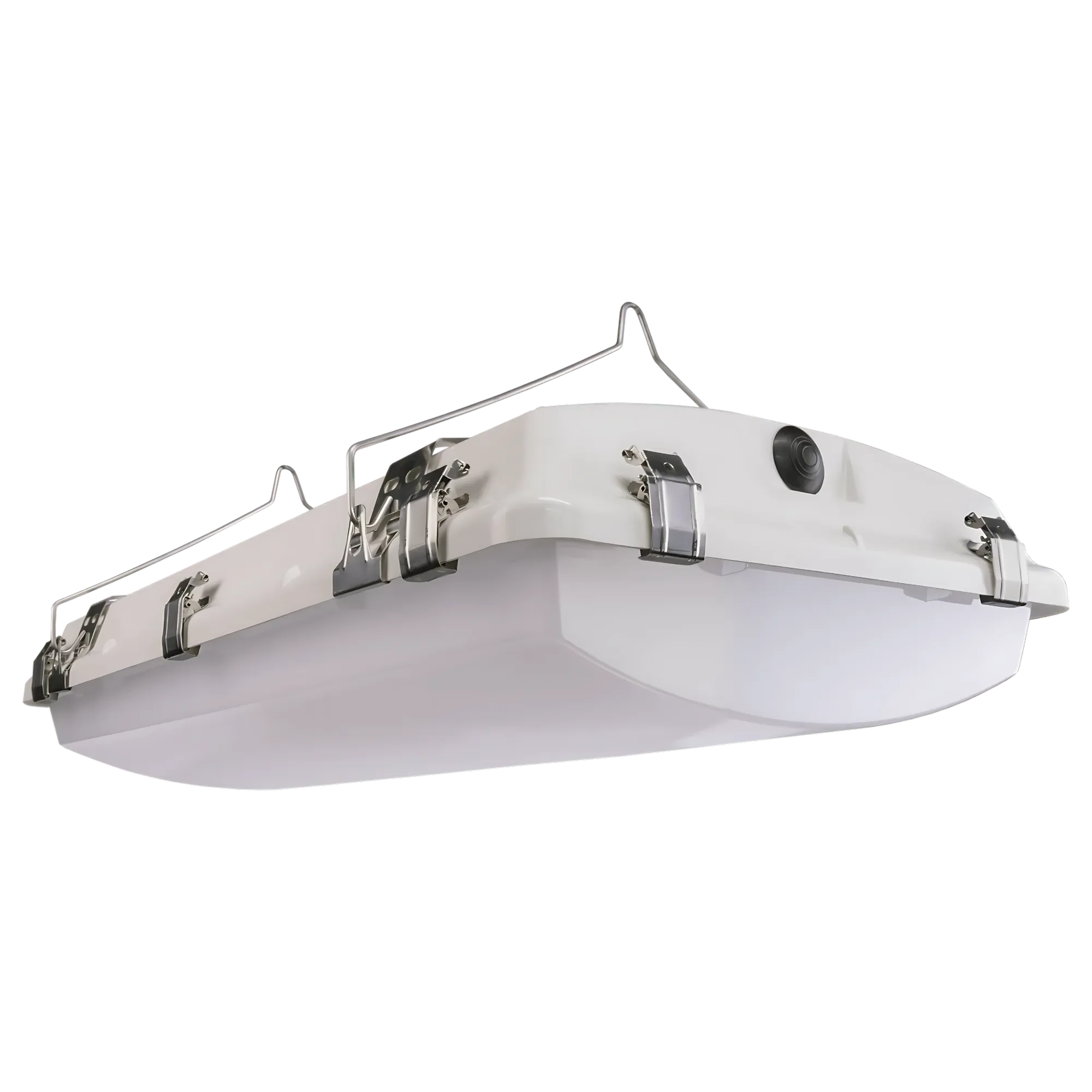

Clear, Frosted Acrylic and Polycarbonate Lensing

L70

>50,000 Hours

Electrical

Wattage

64 to 128 Watts

Voltage

Universal (120-277V) – 347/480V Optional

Driver

0-10V Controls Ready Standard

Power Factor

>0.90

THD

< 20%

Surge Protection

6kV/3kA

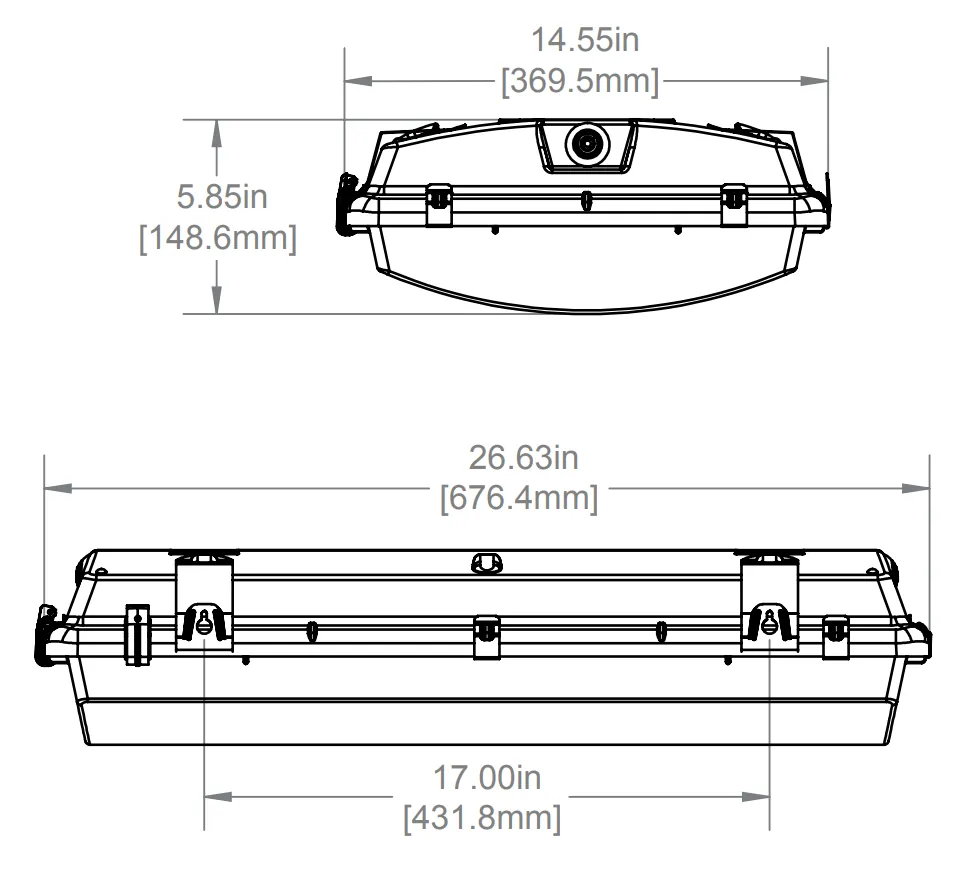

Mechanical

Length

26.5″

Width

14.5″

Height

5.8″

Weight

11 lbs.

Housing

UL 5VA Fiberglass

Mounting

V-Hook, Mounting Bracket, Rigid Mount, Pendant, Cable

Compliance & Environment

Ingress Rating

IP69

Operating Temp

-40°F to 131°F (-40°C to 55°C)

Certifications

UL Listed, IP65/66/67/69, DLC Premium, RoHS, NSF, NEMA 4X

Trade Compliance

BAA · BABA

Warranty

5 Years

Lead Time

4 to 6 Weeks

Resources & Downloads

Spec packages for designers, engineers, and procurement.

Spec’ing a project? Call us at (530) 887-1110

PDF

VT2W Specification Sheet

IES

VT2W Photometric Files (.IES)

RFA

VT2W Revit / BIM Family

PDF

VT2W Photometric Report

PDF

VT2W Install Guide

PDF

VT2W BAA/BABA/TAA Trade Compliance
