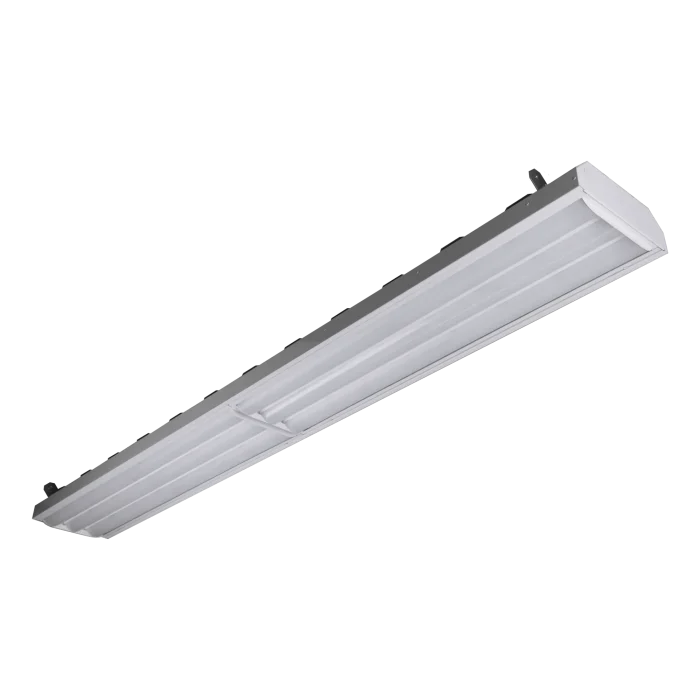

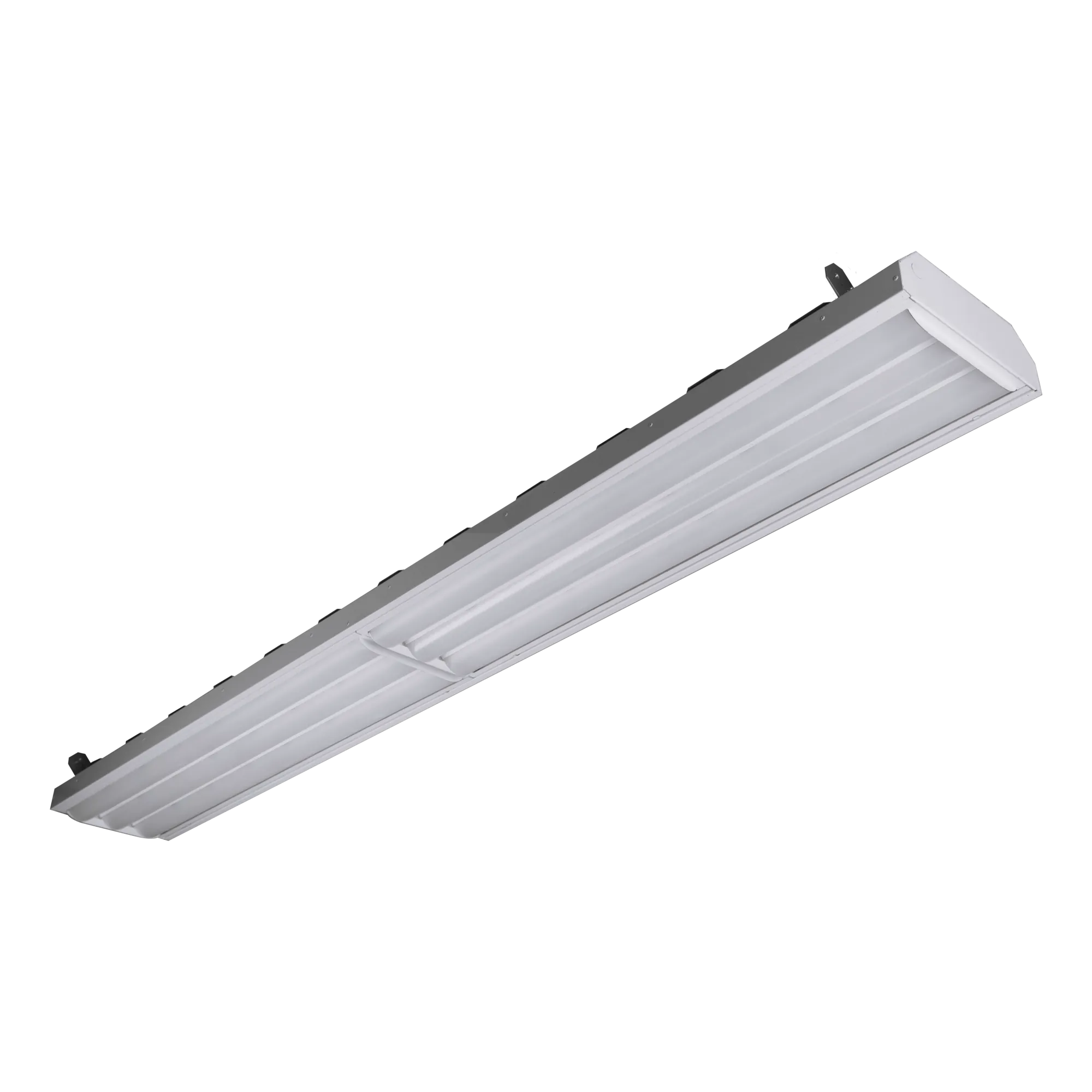

8ft LED Direct-Indirect Tennis Fixture

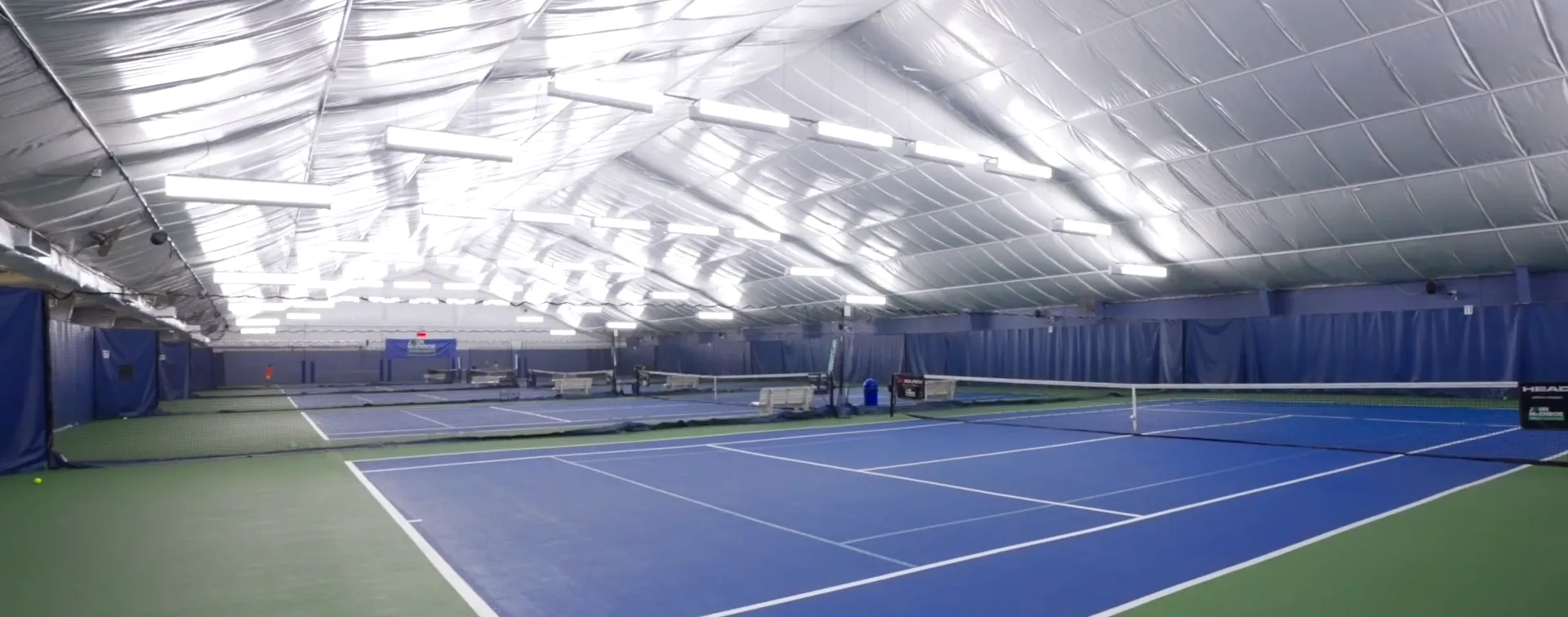

LED Indoor Tennis Lights Application Section background
8ft LED Direct-Indirect Tennis Fixture - Image 3

BAY-LHB8-TCS · Direct-Indirect Tennis Fixture · 8-Foot

8ft LED Direct-Indirect Tennis Fixture

Glare-controlled lighting for indoor tennis venues

SKU BAY-LHB8-TCS Category

Certifications

In professional tennis and recreational clubs, visual acuity is paramount to a proper sporting experience. This specialized LED Direct-Indirect Tennis Fixture provides the ultimate solution, featuring a balanced light distribution and high-transmission lensing to protect against eye strain and blind spots. Delivering 240W and this fixture produces 36,000 lumens  of powerful illumination.

Ideal Applications

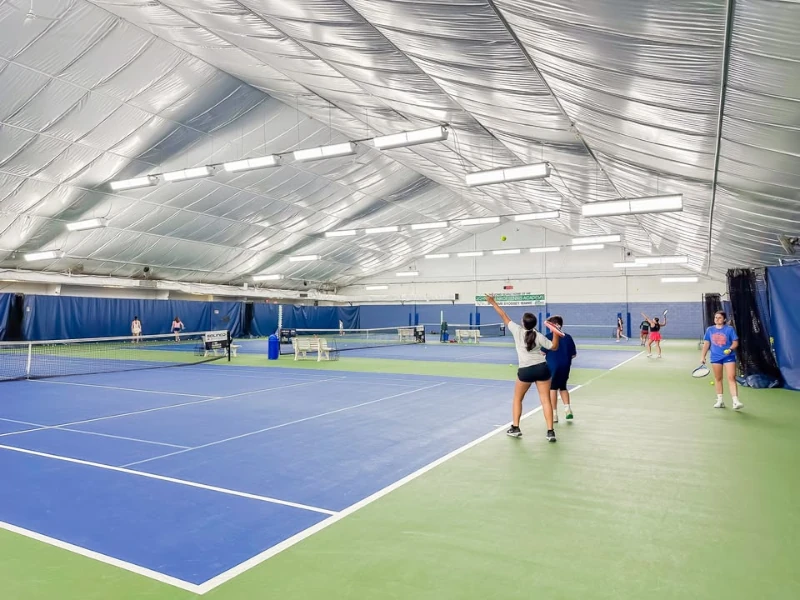

  • Indoor Tennis Courts
  • Tennis Bubbles
  • Athletic Complexes
  • Country Clubs
  • University Sports Facilities
240

Watts

36623

Lumens

3500/4000/5000

Kelvin

Damp Rated

Ingress

Request A Quote
Download Files

Highlights

Engineered for low glare and long service life.

Glare-Free Optics

Our LBAT Lens design eliminates glare for players looking up to track the ball.

Court-Specific Photometrics

Designed to USTA-recommended lighting levels and uniformity.

240 Watts

36623 delivered lumens. Per-court tuned output.

Wireless Controls

Built-in wireless dimming and scene control for tournaments and practice.

Facility Control Compatable

Control your fixtures remotely for autonomous pickleball facility capabilities.

7 Year Warranty

Driver, LEDs, and housing covered.

Federal-Ready

BAA / BABA compliant for federal procurement and infrastructure.

Mounting Options

Angle Bracket Mount

Specifications

Built to your project, not to a part number.

Talk to our sales team at [email protected] to match the right configuration to your application.

Contact Us!

Photometrics

Lumen Output

36623 lm

Efficacy

Up to 153 lm/W

CCT Options

3500K, 4000K, 5000K

CRI

80 (90 Available Upon Request)

Optics & Distribution

Direct-Indirect

L70

>50,000 Hours

Electrical

Wattage

240 Watts

Voltage

Universal (120-277V) – 347/480V Optional

Driver

0-10V Controls Ready Standard

Power Factor

>0.90

THD

< 20%

Surge Protection

6kV/3kA

Mechanical

Length

92″

Width

12″

Height

4.5″

Weight

21.0 lbs.

Housing

Angled Aluminum High Bay Housing

Mounting

Angle Bracket Mount, Center Channel Adjustable Mount

Compliance & Environment

Ingress Rating

Damp Rated

Operating Temp

-4°F to 122°F (-20°C to 50°C)

Certifications

BAA, BABA, CSA Listed, DLC Premium, Made in the USA

Trade Compliance

BAA · BABA

Warranty

7 Years

Lead Time

4-6 Weeks

Resources & Downloads

Spec packages for designers, engineers, and procurement.

Spec’ing a project? Call us at (530) 887-1110

PDF

BAY-LHB8-TCS Specification Sheet

Download

IES

BAY-LHB8-TCS Photometric Files (.IES)

Download

RFA

BAY-LHB8-TCS Revit / BIM Family

Download

PDF

BAY-LHB8-TCS Photometric Report

Download

PDF

BAY-LHB8-TCS Install Guide

Download

PDF

BAY-LHB8-TCS BAA/BABA/TAA Trade Compliance

Download
