Contractor Select LED Wall Pack Traditional

Contractor Select LED Wall Pack Traditional

SKU 1ST-CSWPT Category Brand:

In stock (can be backordered)

Certifications

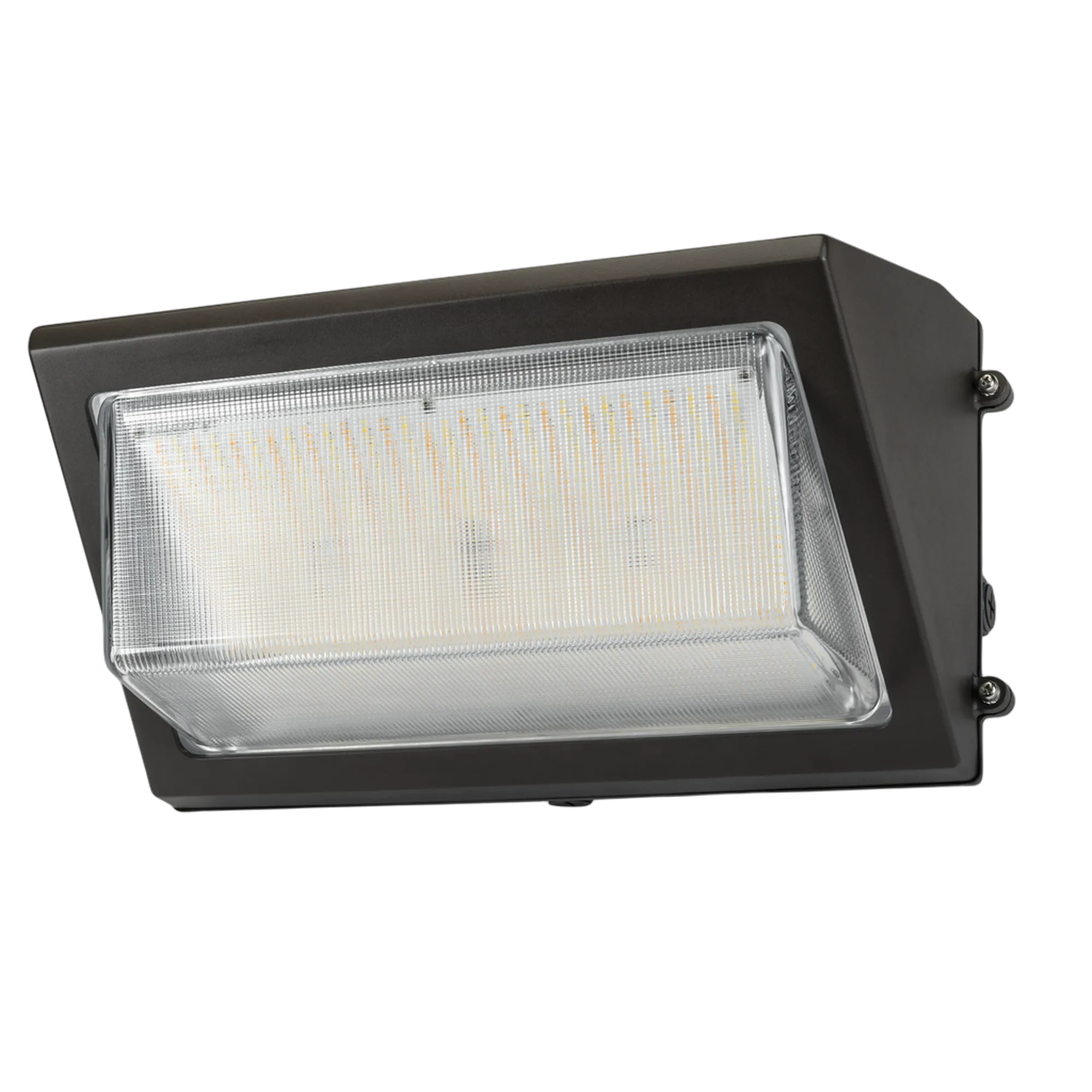

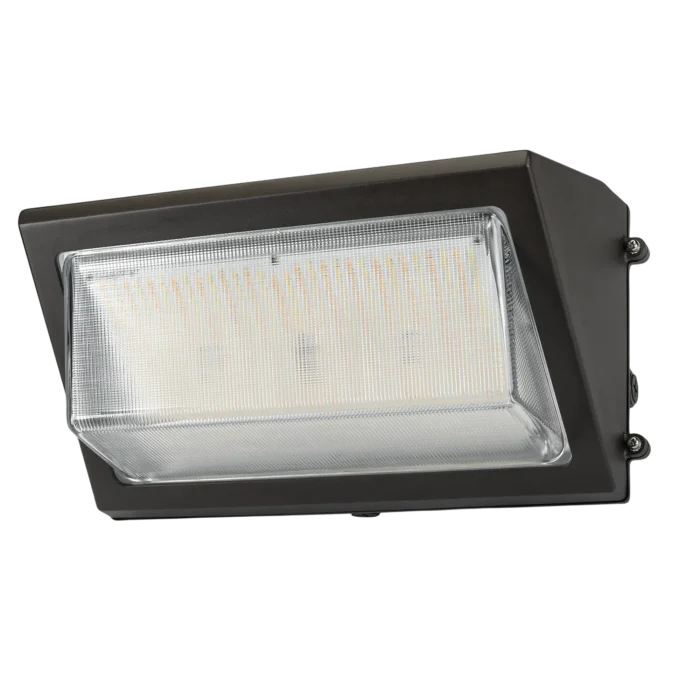

The 1ST-CSWPT Contractor Select LED Wall Pack Traditional offers a direct 1-for-1 replacement solution for legacy HID wall packs while delivering modern LED performance. Its traditional footprint simplifies upgrades on existing installations.
This fixture features Color Select technology and a built-in dusk-to-dawn photocell. It maintains compatibility with common mounting patterns while providing improved energy efficiency, longer life, and better light quality compared to older HID fixtures. The traditional design ensures straightforward installation and reliable outdoor operation.

Request A Quote
Download Files

Commonly Purchased Together

Highlights

Traditional-footprint wall pack for direct 1-for-1 HID replacement.

Field Selectable

Selectable color temperature for an all-in-one solution.

Optical Distribution

120° forward-throw distribution for perimeter and security lighting.

Ingress Protection

IP65 rated for wet-location performance.

Sensor Capability

Built-in 0-10V dimming with AUX capability to power wireless controls.

Long Lifespan

>50,000 Hours rated lifespan.

Mounting Options

Wall Mount mounting available.

Factory Warranty

10-Year limited warranty.

Certifications

UL listed and DLC Premium qualified.

Specifications

One SKU, Many Fixtures.

Talk to our sales team at [email protected] to match the right configuration to your application.

Contact Us!

Photometrics

Lumen Output

5,460 to 16,075lm

Efficacy

Up to 156 lm/W

CCT Options

3000K, 4000K, 5000K

CRI

>80

Optics & Distribution

120°

L70

>50,000 Hours

Electrical

Wattage

35w to 120w

Voltage

Universal (120-277V)

Driver

0-10V and AUX Controls Ready Driver

Power Factor

>0.95

THD

< 20%

Surge Protection

6kV standard

Mechanical

Length

8.98″ – 14.84″

Width

7.4″ – 10.55″

Height

2.75″ – 3.38″

Weight

4 / 8 lbs

Housing

Bronze housing

Mounting

Wall Mount

Compliance & Environment

Ingress Rating

IP65

Operating Temp

−40°F to 122°F (−40°C to 50°C)

Certifications

UL Listed · IP65 · DLC Premium

Trade Compliance

NA

Warranty

10 Year Limited

Lead Time

1-2 Weeks

Resources & Downloads

Spec packages for designers, engineers, and procurement.

PDF

1ST-CSWPT Specification Sheet

IES

1ST-CSWPT Photometric Files (.IES)

RFA

1ST-CSWPT Revit / BIM Family

PDF

1ST-CSWPT Photometric Report

PDF

1ST-CSWPT Install Guide

PDF

1ST-CSWPT BAA/BABA/TAA Trade Compliance
