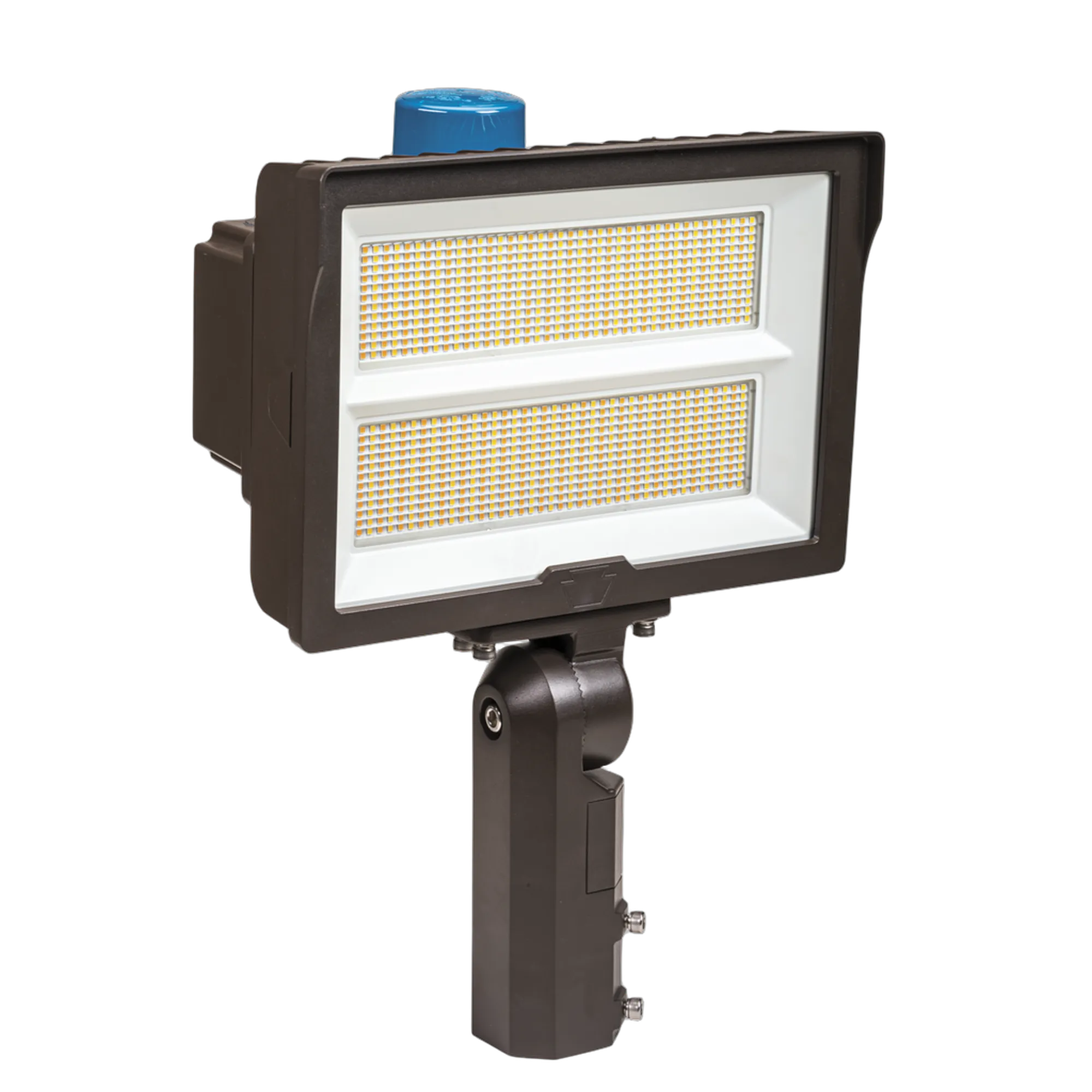

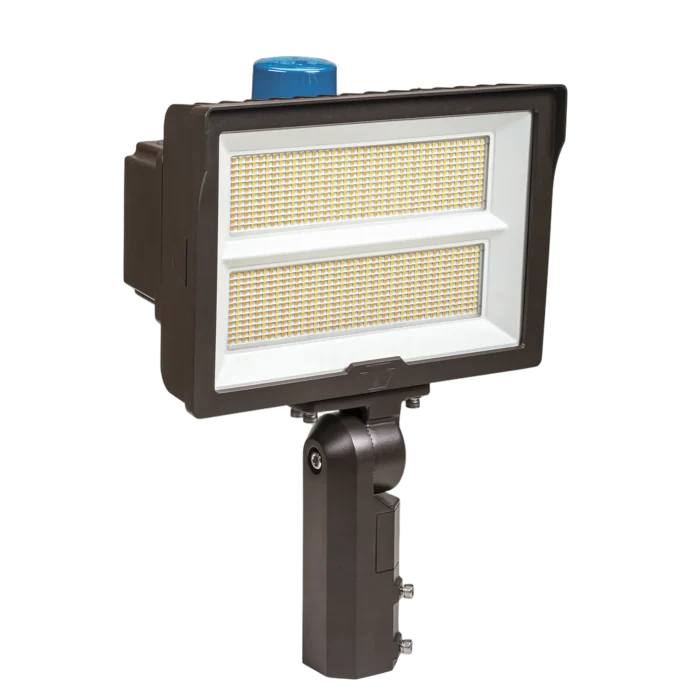

Contractor Select LED High Power Floodlight

Contractor Select LED High Power Floodlight

SKU 1ST-CSHPFLD Category Brand:

In stock (can be backordered)

Certifications

The 1ST-CSHPFLD Contractor Select LED High Power Floodlight provides high-lumen output for large area lighting, sports facilities, parking lots, and industrial yards. Its powerful design handles demanding outdoor applications where high illumination levels are required. This fixture offers field-adjustable power outputs along with Color Select technology and is available in both standard and high-voltage configurations. It includes a NEMA/ANSI 3-pin photocell receptacle and multiple mounting options. The high-power version delivers excellent efficacy and long-term reliability in harsh outdoor conditions.

Request A Quote
Download Files

Commonly Purchased Together

Highlights

High-lumen floodlight engineered for large-area and sports-field illumination.

Field Selectable

Selectable color temperature and wattage for an all-in-one solution.

Field-Adjustable Aiming

120° beam with adjustable mounting for large-area aiming.

Ingress Protection

IP65 rated for wet-location performance.

Sensor Capability

Built-in 0-10V dimming with AUX capability to power wireless controls.

Long Lifespan

>50,000 Hours rated lifespan.

Mounting Options

Knuckle, Yoke, Trunion, Slip-Fitter mounting available.

Factory Warranty

10-Year limited warranty.

Certifications

UL listed and DLC Premium qualified.

Specifications

One SKU, Many Fixtures.

Talk to our sales team at [email protected] to match the right configuration to your application.

Contact Us!

Photometrics

Lumen Output

20,300 to 40,600lm

Efficacy

Up to 145 lm/W

CCT Options

3000K, 4000K, 5000K

CRI

>80

Optics & Distribution

Multiple NEMA Lens Options Available

L70

>50,000 Hours

Electrical

Wattage

25w to 81w

Voltage

Universal (120-277V)

Driver

0-10V and AUX Controls Ready Driver

Power Factor

>0.95

THD

< 20%

Surge Protection

6kV standard

Mechanical

Length

18.23″ – 19.88″

Width

12.05″ – 13.86″

Height

6.72″ – 7.7″

Weight

10 / 15 lbs

Housing

Bronze housing

Mounting

Knuckle, Yoke, Trunion, Slip-Fitter

Compliance & Environment

Ingress Rating

IP65

Operating Temp

−40°F to 122°F (−40°C to 50°C)

Certifications

UL Listed · IP65 · DLC Premium

Trade Compliance

NA

Warranty

10 Year Limited

Lead Time

1-2 Weeks

Resources & Downloads

Spec packages for designers, engineers, and procurement.

PDF

1ST-CSHPFLD Specification Sheet

IES

1ST-CSHPFLD Photometric Files (.IES)

RFA

1ST-CSHPFLD Revit / BIM Family

PDF

1ST-CSHPFLD Photometric Report

PDF

1ST-CSHPFLD Install Guide

PDF

1ST-CSHPFLD BAA/BABA/TAA Trade Compliance

Designing the install? We'll model it in our software, at no charge.

Request A Free Lighting Layout
