RSD-RCSF24 · Sealed Face Troffer · 2x4

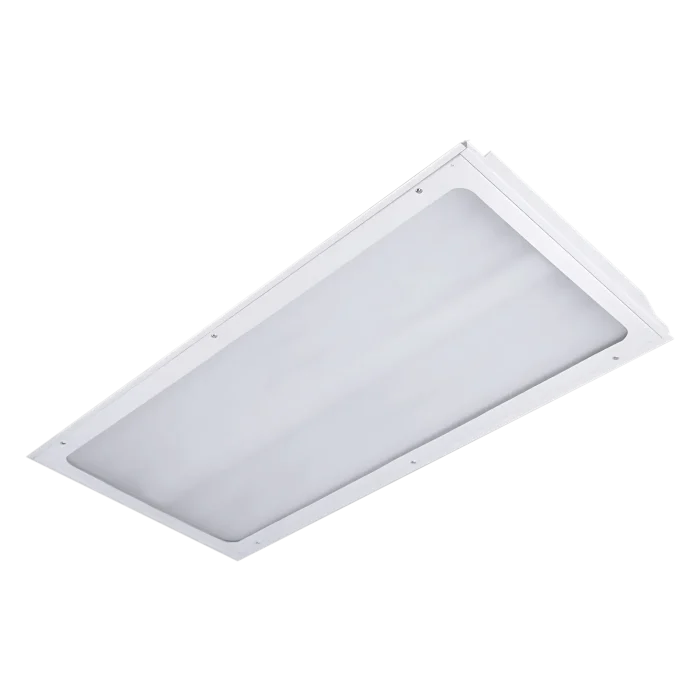

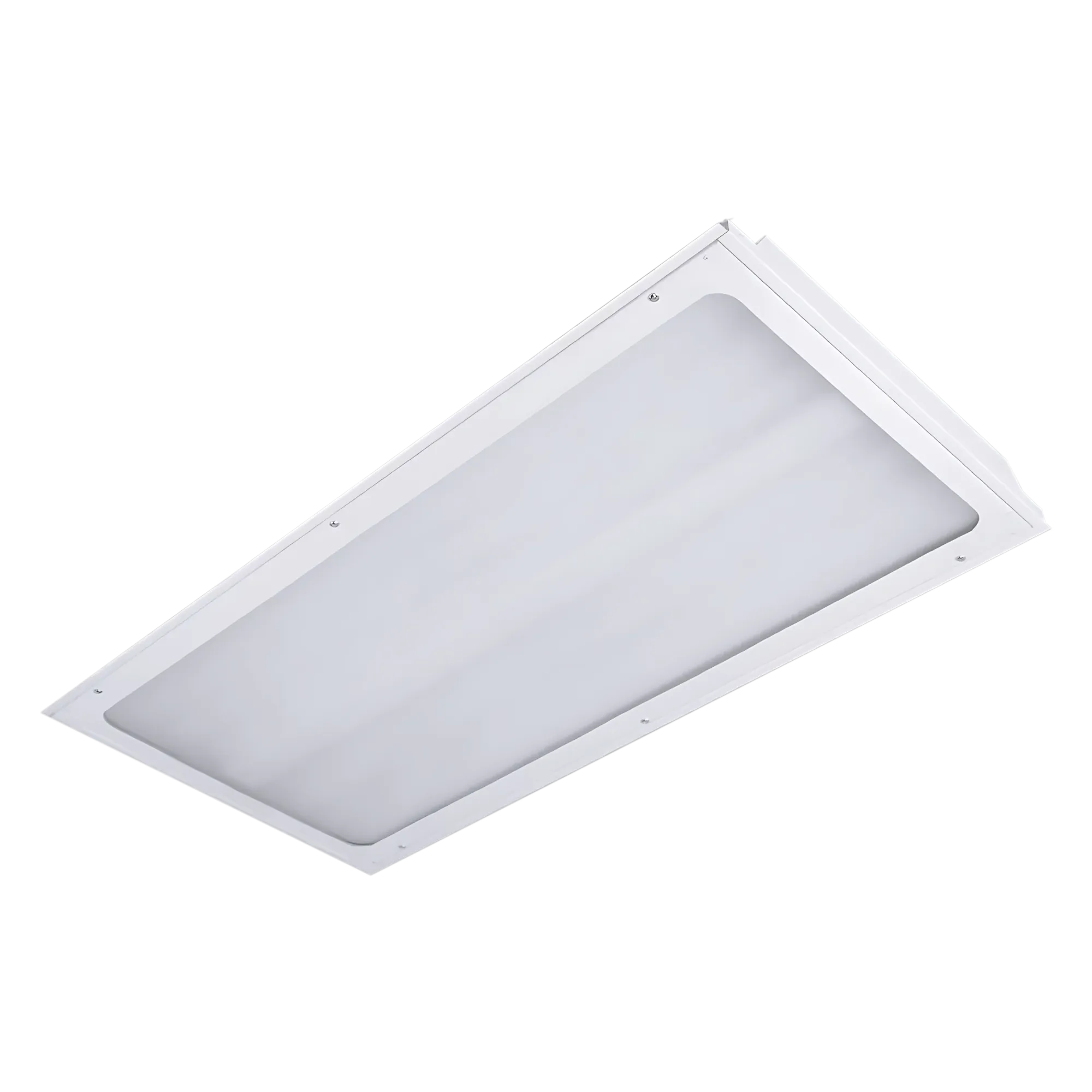

2×4 LED Sealed Face Troffer

Sealed-face troffer for cleanrooms and food prep

SKU RSD-RCSF24 Category

Certifications

In food processing and clean environments, hygiene is paramount, and contaminant ingress is the enemy. This specialized 4 LED Sealed Face Troffer provides the ultimate solution, featuring a silicone-sealed door and EPDM rubber gasketing to protect against moisture and debris. Delivering power from 84W to 170W , this fixture produces between 12,000 and 24,000 lumens of powerful illumination.

Ideal Applications

  • Food Processing Areas
  • Bottling Plants
  • Manufacturing and Production Facilities
  • Cold Storage
  • Pools and Natatoriums
84 to 170

Watts

12103 to 23987

Lumens

3500/4000/5000

Kelvin

IP67 Sealed Face

Ingress

Highlights

Engineered for the toughest commercial cold storage and food preparation environments.

Sealed Face Construction

Gasketed lens and housing for cleanroom, food prep, and washdown environments.

Pending NSF Rating

Built to NSF standard for splash zone safety in food processing and prep areas.

84 to 170 Watts

12103 to 23987 delivered lumens. Form-factor-specific output.

Diffused Polycarbonate Lens

Impact-resistant lens for sanitary and high-pressure-cleaning environments.

Wireless Controls Compatible

Integrates with wireless dimming and scene control systems.

7 Year Warranty

Driver, LEDs, and housing covered.

Federal-Ready

BAA / BABA compliant for federal procurement and infrastructure.

Mounting Options

T-Bar Lay In

Specifications

Built to your project, not to a part number.

Talk to our sales team at [email protected] to match the right configuration to your application.

Photometrics

Lumen Output

12103-23987 lm

Efficacy

Up to 152 lm/W

CCT Options

3500K, 4000K, 5000K

CRI

80 (90 Available Upon Request)

Optics & Distribution

Wide, Diffused Lens

L70

>50,000 Hours

Electrical

Wattage

84 to 170 Watts

Voltage

Universal (120-277V) – 347/480V Optional

Driver

0-10V Controls Ready Standard

Power Factor

>0.90

THD

< 20%

Surge Protection

6kV/3kA

Mechanical

Length

47.8″

Width

23.8″

Height

3.5″

Weight

18.0 lbs.

Housing

Sealed Face Housing

Mounting

T-Bar Lay In

Compliance & Environment

Ingress Rating

IP67 Sealed Face

Operating Temp

-40ºC/−40ºF to 50ºC/122ºF

Certifications

BAA, BABA, CSA Listed, Made in the USA

Trade Compliance

BAA · BABA

Warranty

7 Years

Lead Time

4-6 Weeks

Resources & Downloads

Spec packages for designers, engineers, and procurement.

Spec’ing a project? Call us at (530) 887-1110

PDF

RSD-RCSF24 Specification Sheet

IES

RSD-RCSF24 Photometric Files (.IES)

RFA

RSD-RCSF24 Revit / BIM Family

PDF

RSD-RCSF24 Photometric Report

PDF

RSD-RCSF24 Install Guide

PDF

RSD-RCSF24 BAA/BABA/TAA Trade Compliance
