6ft LED Direct-Indirect Pickleball Fixture
1st Source Lighting Pickleball Fixture Example vs UFO High bay NEW

BAY-LHB6-PCS · Direct-Indirect Pickleball Fixture · 6-Foot

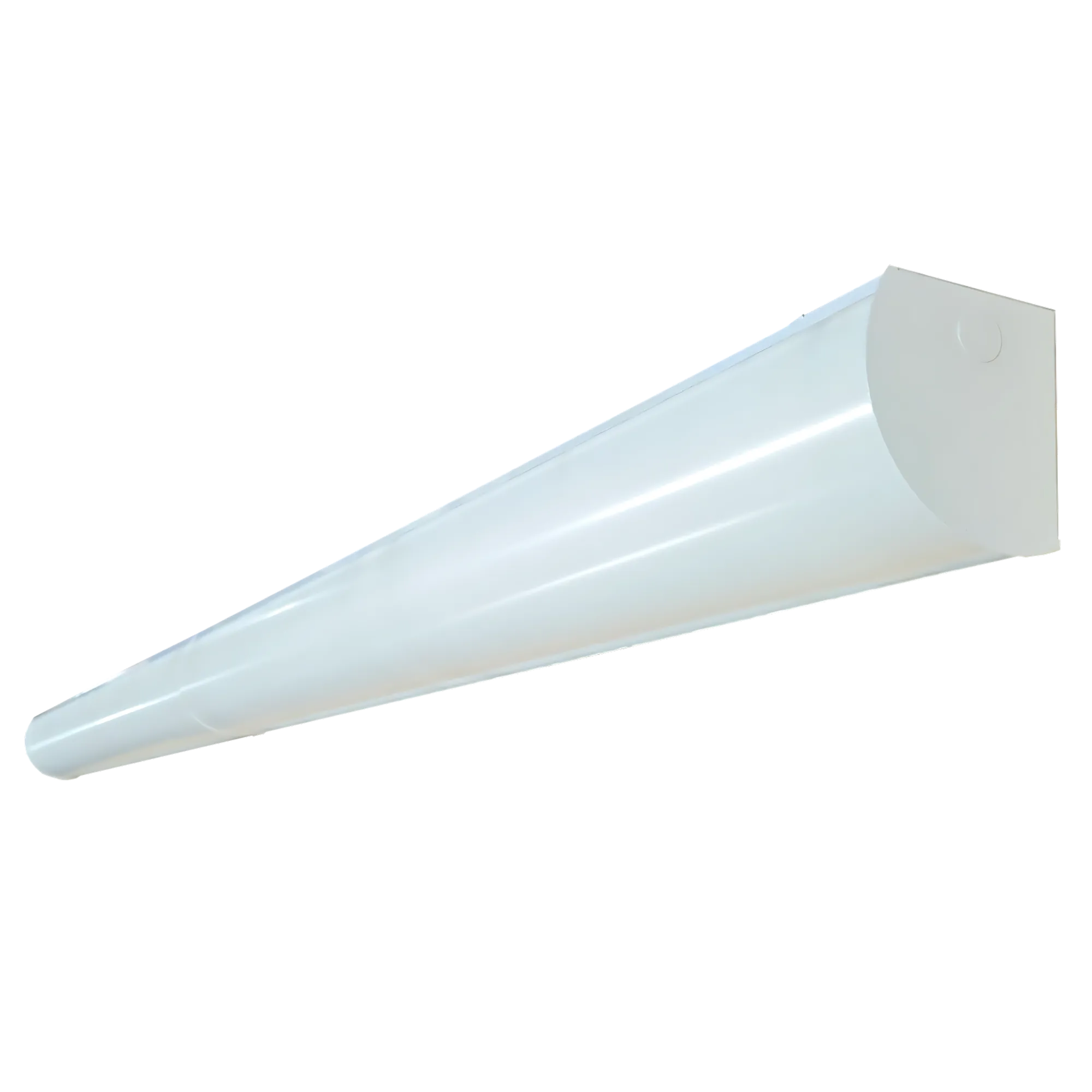

6ft LED Direct-Indirect Pickleball Fixture

Glare-controlled lighting for indoor pickleball courts

SKU BAY-LHB6-PCS Category

Certifications

In competitive sports and recreational environments, visual comfort is paramount, and blinding lighting is the enemy. This specialized 6ft LED Direct-Indirect Pickleball Fixture provides the ultimate solution, featuring a balanced up/down light distribution and high-transmission lensing to protect against eye strain and blinding brightness. Delivering power at 170W, this fixture produces 27,000 lumens of powerful illumination.

Ideal Applications

  • Indoor Pickleball Courts
  • Tennis Centers
  • Multi-Sport Gymnasiums
  • Recreational Facilities
  • High-Ceiling Athletic Areas
170

Watts

25560 to 26081

Lumens

3500/4000/5000

Kelvin

Damp Rated

Ingress

Request A Quote
Download Files

Highlights

Engineered for low glare and long service life.

Glare-Free Optics

Our LBAT Lens design eliminates glare for players looking up to track the ball.

Court-Specific Photometrics

Designed to USAPA-recommended lighting levels and uniformity.

170 Watts

25560 to 26081 delivered lumens. Per-court tuned output.

Wireless Controls

Built-in wireless dimming and scene control for tournaments and practice.

Facility Control Compatable

Control your fixtures remotely for autonomous pickleball facility capabilities.

7 Year Warranty

Driver, LEDs, and housing covered.

Federal-Ready

BAA / BABA compliant for federal procurement and infrastructure.

Mounting Options

Angle Bracket Mount, Center Channel Adjustable Mount

Specifications

Built to your project, not to a part number.

Talk to our sales team at [email protected] to match the right configuration to your application.

Contact Us!

Photometrics

Lumen Output

25560-26081 lm

Efficacy

Up to 153 lm/W

CCT Options

3500K, 4000K, 5000K

CRI

80 (90 Available Upon Request)

Optics & Distribution

Direct-Indirect

L70

>50,000 Hours

Electrical

Wattage

170 Watts

Voltage

Universal (120-277V) – 347/480V Optional

Driver

0-10V Controls Ready Standard

Power Factor

>0.90

THD

< 20%

Surge Protection

6kV/3kA

Mechanical

Length

69″

Width

3.9″

Height

4.3″

Weight

8.0 lbs.

Housing

Angled Aluminum Housing

Mounting

Angle Bracket Mount, Center Channel Adjustable Mount

Compliance & Environment

Ingress Rating

Damp Rated

Operating Temp

-4°F to 122°F (-20°C to 50°C)

Certifications

BAA, BABA, CSA Listed, DLC Premium, Made in the USA

Trade Compliance

BAA · BABA

Warranty

7 Years

Lead Time

4-6 Weeks

Resources & Downloads

Spec packages for designers, engineers, and procurement.

Spec’ing a project? Call us at (530) 887-1110

PDF

BAY-LHB6-PCS Specification Sheet

IES

BAY-LHB6-PCS Photometric Files (.IES)

RFA

BAY-LHB6-PCS Revit / BIM Family

PDF

BAY-LHB6-PCS Photometric Report

PDF

BAY-LHB6-PCS Install Guide

PDF

BAY-LHB6-PCS BAA/BABA/TAA Trade Compliance

Designing the install? We'll model it in our software, at no charge.

Request A Free Lighting Layout
