LED Indirect Hex Fixture
Indirect LED Indoor Tennis Lighting application 2

DID-HEX · Indirect Hex Fixture

LED Indirect Hex Fixture

Indirect ambient lighting for indoor tennis and inflatable bubbles

SKU DID-HEX Category

Certifications

In indoor athletic and air-supported structures, the LED Indirect Hex Fixture is the best option. This specialized indirect HEX fixture provides the ultimate solution, featuring a 100% indirect distribution and asymmetric optics to bounce light off ceilings for shadow-free illumination. Delivering power from 346W to 405W , this fixture produces between 51,000 and 58,000 lumens  of powerful illumination.

Ideal Applications

  • Indoor Tennis Courts
  • Pickleball Facilities
  • Air-Supported Structures (Bubbles)
  • Riding Arenas
  • Field Houses
346 to 400

Watts

50194 to 61896

Lumens

4000/5000

Kelvin

Damp Rated

Ingress

Request A Quote
Download Files

Highlights

Engineered for even light levels and long lasting performance.

Indirect Lighting Distribution

Uplit hex design produces soft, glare-free ambient light from ceiling reflection.

High Ceiling Optimized

Hexagonal aluminum housing engineered for tennis, pickleball, and outdoor inflatable bubble heights.

346 to 400 Watts

50194 to 61896 delivered lumens. Premium ambient output for sports venues.

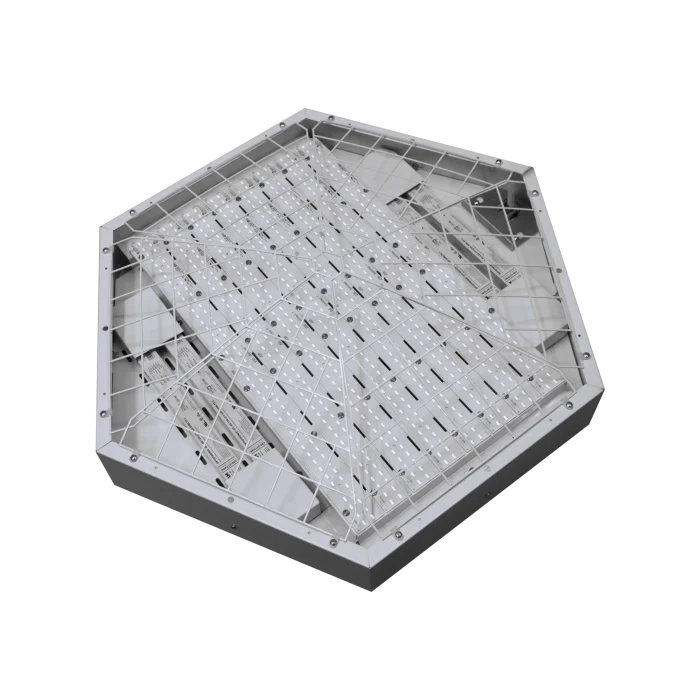

Wire Cage Protection

Steel wire cage for ball-impact protection in active sports environments.

Wireless Controls Compatible

Integrates with wireless dimming and scene control systems.

7 Year Warranty

Driver, LEDs, and housing covered.

Federal-Ready

BAA / BABA compliant for federal procurement and infrastructure.

Mounting Options

Single Point Hanging Mount, Pendant Mount, Angle Adjustable Slip Fitter

Specifications

Built to your project, not to a part number.

Talk to our sales team at [email protected] to match the right configuration to your application.

Contact Us!

Photometrics

Lumen Output

50194-61896 lm

Efficacy

Up to 158 lm/W

CCT Options

4000K, 5000K

CRI

80 (90 Available Upon Request)

Optics & Distribution

Indirect

L70

>50,000 Hours

Electrical

Wattage

346 to 400 Watts

Voltage

Universal (120-277V) – 347/480V Optional

Driver

0-10V Controls Ready Standard

Power Factor

>0.90

THD

< 20%

Surge Protection

6kV/3kA

Mechanical

Length

25.6″

Width

29.6″

Height

6.6″

Weight

18.0 lbs.

Housing

Hexagonal Aluminum Housing

Mounting

Single Point Hanging Mount, Pendant Mount, Angle Adjustable Slip Fitter

Compliance & Environment

Ingress Rating

Damp Rated

Operating Temp

-4°F to 122°F (-20°C to 50°C)

Certifications

BAA, BABA, CSA Listed, DLC Premium, Made in the USA

Trade Compliance

BAA · BABA

Warranty

7 Years

Lead Time

4-6 Weeks

Resources & Downloads

Spec packages for designers, engineers, and procurement.

Spec’ing a project? Call us at (530) 887-1110

PDF

DID-HEX Specification Sheet

Download

IES

DID-HEX Photometric Files (.IES)

Download

RFA

DID-HEX Revit / BIM Family

Download

PDF

DID-HEX Photometric Report

Download

PDF

DID-HEX Install Guide

Download

PDF

DID-HEX BAA/BABA/TAA Trade Compliance

Download
