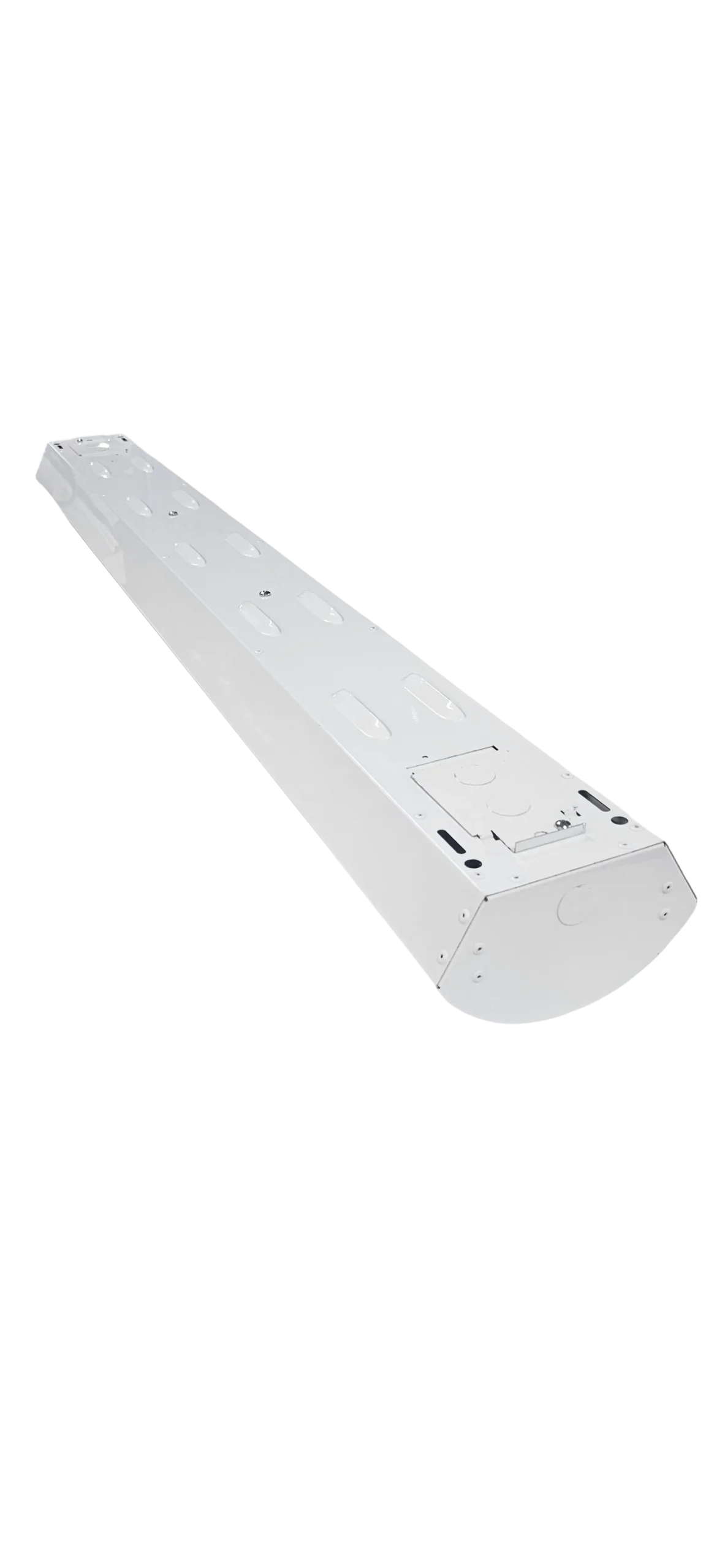

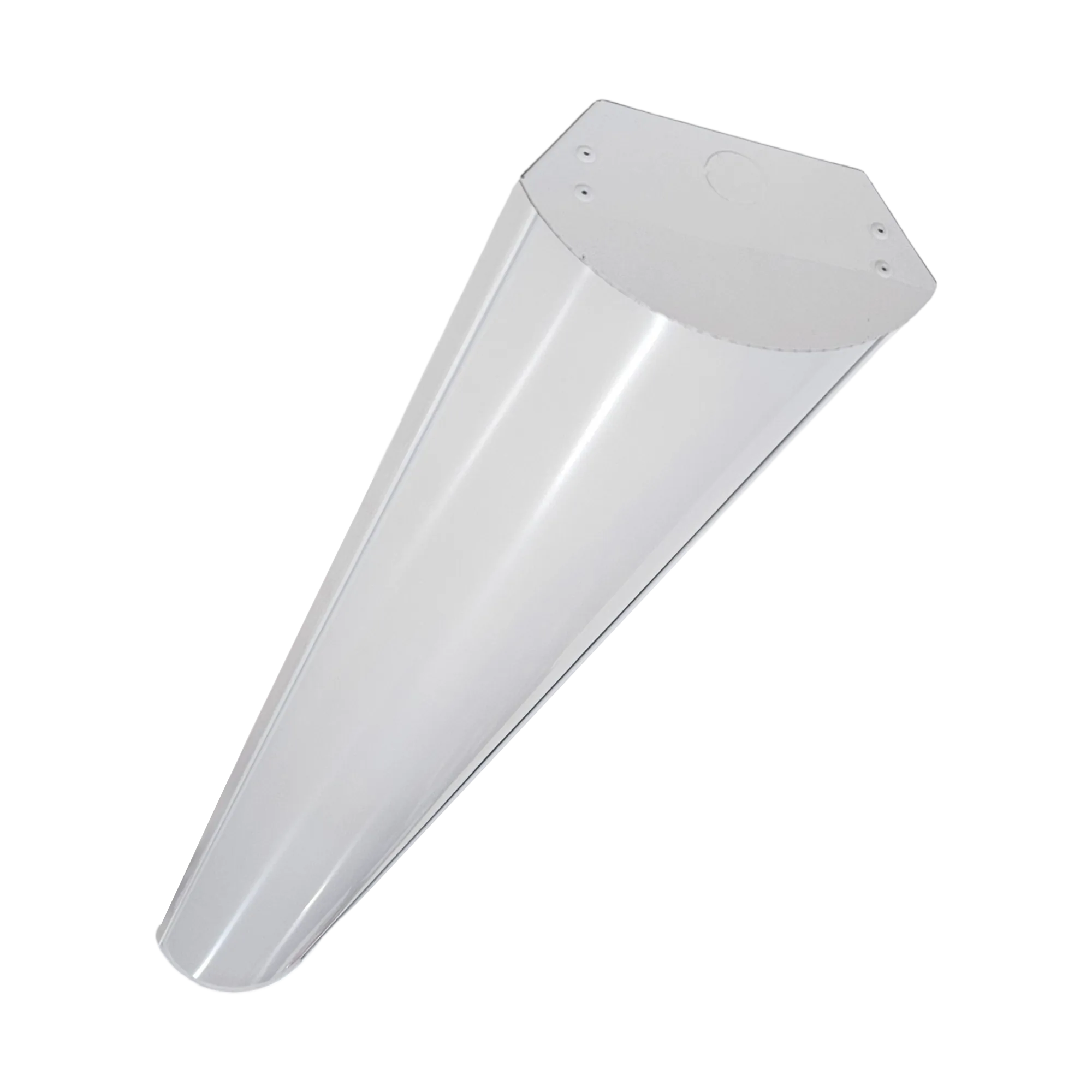

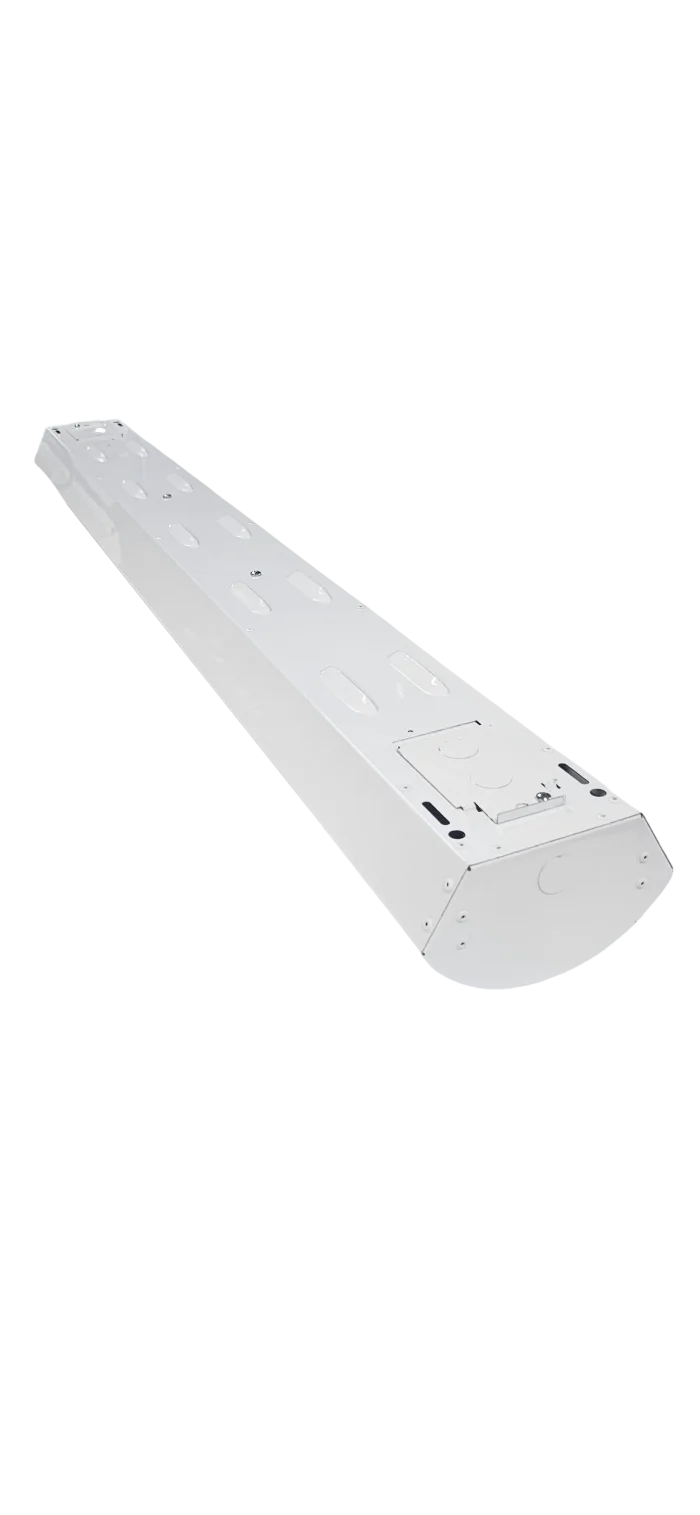

The work surface in a data center is the vertical face of the server cabinet, not the floor, and standard linear fixtures optimize for the wrong plane. The 8ft Synapse uses an angled LED tray that throws peak candela outward toward the rack faces on either side of the aisle, targeting 40 to 50 vertical footcandles across the 3 to 6-foot zone where technicians trace color-coded cabling, read port labels, and perform hot-swap work. FCC Part 15 Class B drivers hold conducted and radiated emissions 6 to 10 dB tighter than the Class A drivers in most commercial fixtures, which matters where 25 and 100 Gbps transceivers share space with overhead lighting. Two rear access plates allow power to be brought in and carried through to the next fixture without removing the LBAT acrylic lens or disturbing the optical face. At 85W delivering approximately 15,000 lumens at 178 lm/W, the Synapse holds down both direct draw and the secondary cooling load it adds to a thermally constrained hall.
