1x4 LED Center Basket Troffer

RSD-TFA14 · Center Basket Troffer · 1x4

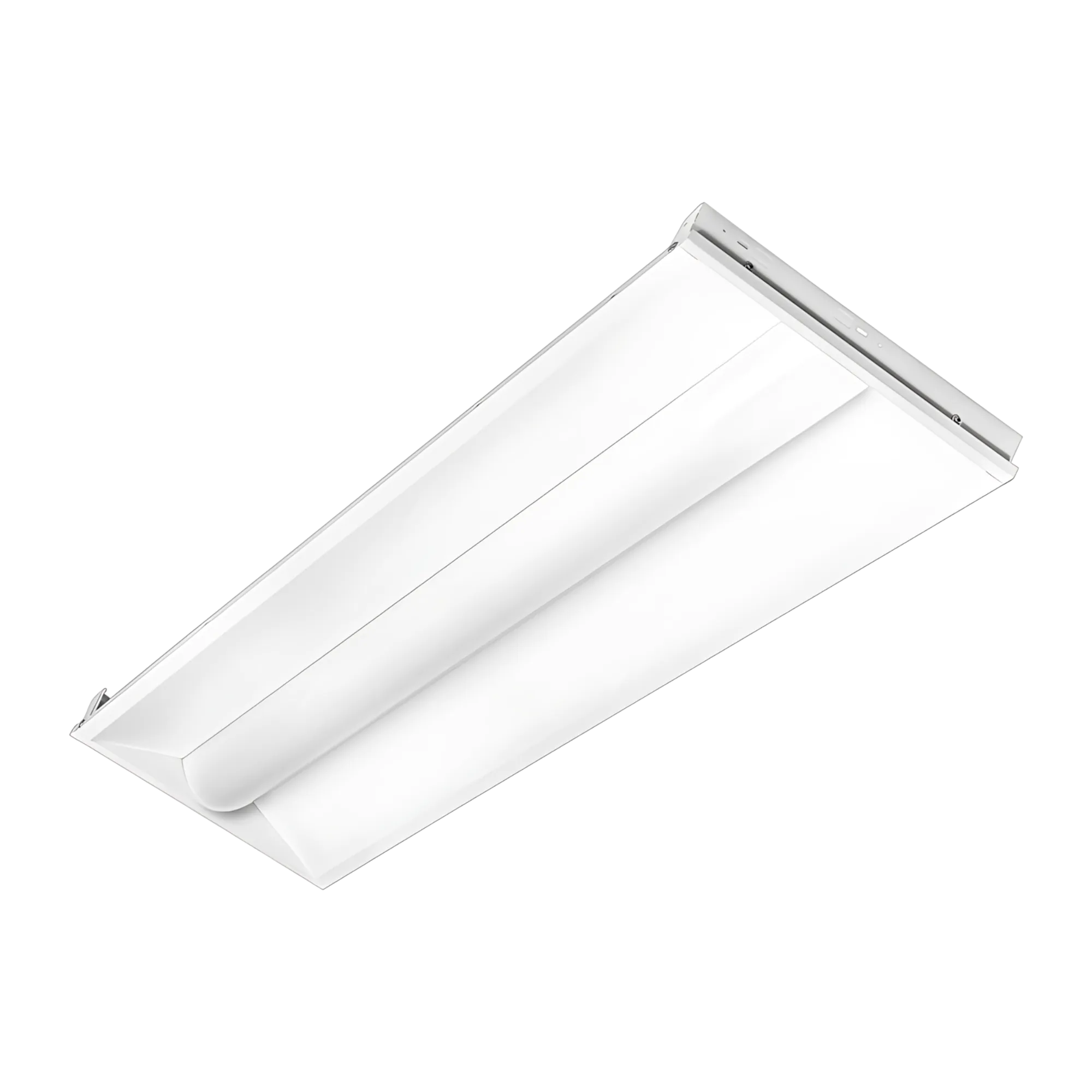

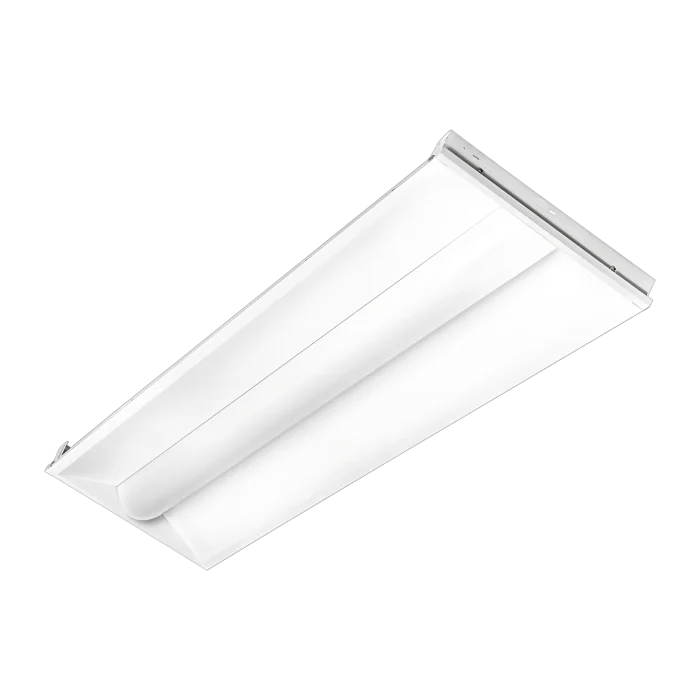

1×4 LED Center Basket Troffer

Volumetric architectural troffer for offices and classrooms

SKU RSD-TFA14 Category

Certifications

In modern office spaces and educational facilities, visual comfort is paramount, and harsh glare should be avoided. Our 1×4 LED Center Basket Troffer provides the ultimate solution, featuring a sleek center-basket design and volumetric optics to create soft, shadow-free light. Delivering power from 20W to 80W , this fixture produces between 3,000 and 12,000 lumens  of uniform illumination.

Ideal Applications

  • Commercial Offices
  • Schools and Universities
  • Hospitals and Healthcare
  • Retail Spaces
  • Corridors and Conference Rooms



20 to 80

Watts

2902 to 12063

Lumens

3500/4000/5000

Kelvin

Damp Rated

Ingress

Request A Quote
Download Files

Highlights

Engineered for long service life in commercial office and classroom applications.

Volumetric Architectural Light

Center basket design delivers uniform, comfortable light distribution.

Diffused Acrylic LBAT Lens

Soft, glare-controlled output ideal for office and classroom environments.

20 to 80 Watts

2902 to 12063 delivered lumens. Energy-efficient for low-light-level commercial spaces.

Drop Ceiling Compatible

Direct grid-mount install for standard suspended ceilings.

Wireless Controls Compatible

Integrates with wireless dimming and scene control systems.

7 Year Warranty

Driver, LEDs, and housing covered.

Federal-Ready

BAA / BABA compliant for federal procurement and infrastructure.

Mounting Options

T-Bar Lay In

Specifications

Built to your project, not to a part number.

Talk to our sales team at [email protected] to match the right configuration to your application.

Contact Us!

Photometrics

Lumen Output

2902-12063 lm

Efficacy

Up to 154 lm/W

CCT Options

3500K, 4000K, 5000K

CRI

80 (90 Available Upon Request)

Optics & Distribution

Wide, Diffused LBAT Lens

L70

>50,000 Hours

Electrical

Wattage

20 to 80 Watts

Voltage

Universal (120-277V) – 347/480V Optional

Driver

0-10V Controls Ready Standard

Power Factor

>0.90

THD

< 20%

Surge Protection

6kV/3kA

Mechanical

Length

47.8″

Width

11.8″

Height

3.5″

Weight

15.0 lbs.

Housing

Recessed Center Basket Housing

Mounting

Frame Mount, Flange Mount, T-Bar Lay-In

Compliance & Environment

Ingress Rating

Damp Rated

Operating Temp

-4ºC/−20ºF to 50ºC/122ºF

Certifications

BAA, BABA, CSA Listed, Made in the USA

Trade Compliance

BAA · BABA

Warranty

7 Years

Lead Time

4-6 Weeks

Resources & Downloads

Spec packages for designers, engineers, and procurement.

Spec’ing a project? Call us at (530) 887-1110

PDF

RSD-TFA14 Specification Sheet

Download

IES

RSD-TFA14 Photometric Files (.IES)

Download

RFA

RSD-TFA14 Revit / BIM Family

Download

PDF

RSD-TFA14 Photometric Report

PDF

RSD-TFA14 Install Guide

PDF

RSD-TFA14 BAA/BABA/TAA Trade Compliance

Download
