LED Indirect Tennis and Pickleball Light

LED Indirect Indoor Tennis and Pickleball Light (HEX)
386 Watts, 57,000 Lumens, Made in the USA

(PDF) Specification Sheet

Download IES Files

Contact Us/Request a Quote



Description

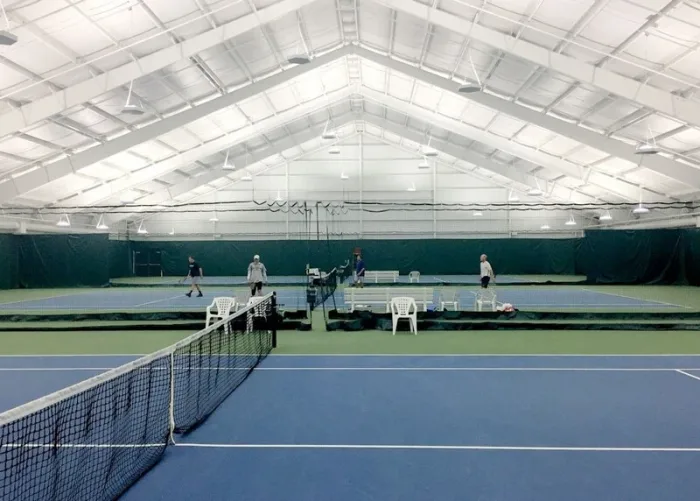

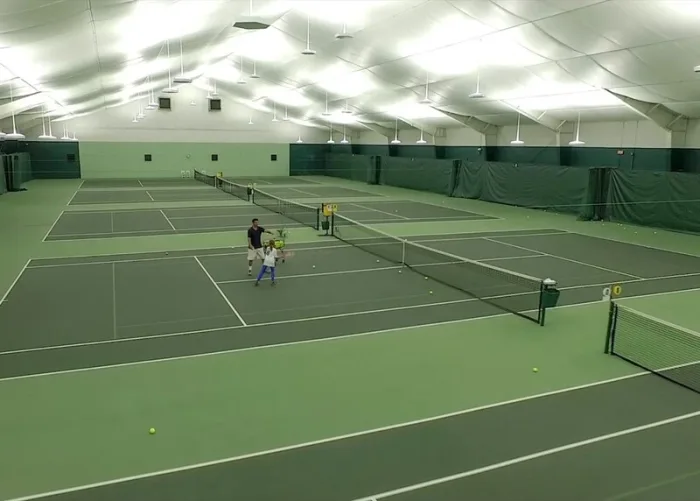

LED Indirect Tennis and Pickleball Light with a unique hexagonal design for indoor indirect court lighting applications. Ideal for tennis and pickleball courts, warehouse and production areas, gymnasiums, field houses, sports bubbles, etc

Product Features

  • High LPW with increased efficacy
  • High Output Indirect Illumination
  • Dim to off (0%), 10% or by line voltage
  • Wireless control options available
  • Service life > 100,000 hours (L90)
  • Made in the USA, BAA compliant

Specifications

High flux linear LED modules, 80+ CRI, 3500K, 4000K or 5000K CCT. Constant current LED power supplies, power factor > 0.9, THD < 20%, 50-60 Hz, universal voltage 120-277v, 347v or 480v.

1st Source Lighting LED fixtures are proudly manufactured using the highest quality components such as AdvanceSylvania OsramSamsung and Tridonic.

Construction

040″ white pre-painted vented aluminum housing and LED module tray. Heavy duty. Standard mounting with 3-point cable kit, pendant or unistrut. Consult factory for custom mounting options.

All fixtures are made in the USA and 100% bench tested prior to shipping.

Dimming & Control Options

Dim to off (0%), 10% or by line voltage. Consult factory for wireless controls options. Schedule and control lighting for your entire facility via remote switch, smartphone, PC or handheld device.

Ratings & Warranty

Operating temperature: -20ºF to 122ºF, rated service life > 100,000 hours (L90), CSA listed, BAA compliant, RoHS compliant. 5-year product warranty. Extended product warranties are available.

Lighting Layouts

1st Source Lighting also offers free lighting layouts to support your facility’s next upgrade or new construction project. Please contact us for details.
